RAKwireless Soil Moisture Sensor

This is a soil moisture sensor kit with one sensor interface module that can be connected to up to three soil moisture and temperature sensors based on ATTINY441-SSU chip. The sensor is based on capacitive measurement and it’s coated sensor element makes it more reliable and longer lasting than sensors based on resistive measurement methods.

The calibration values are stored on the sensor element itself, so once a sensor is calibrated, it can be attached to any WisBlock Core module without the need to start a new calibration.

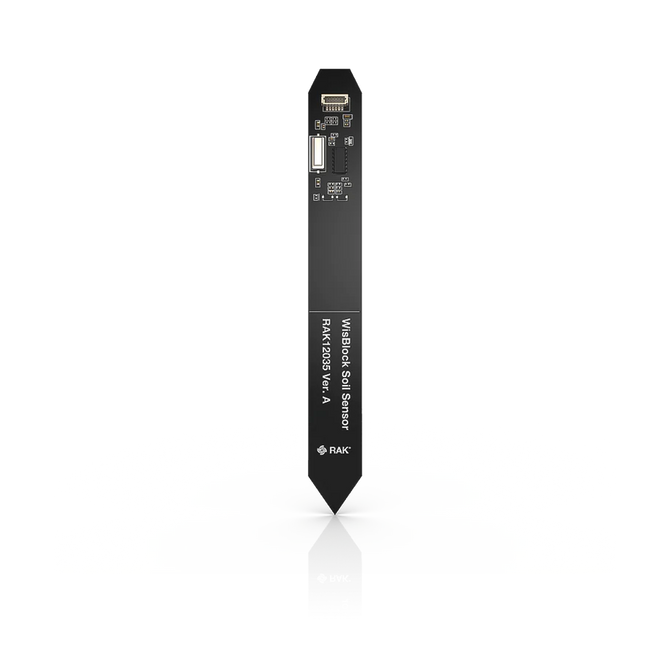

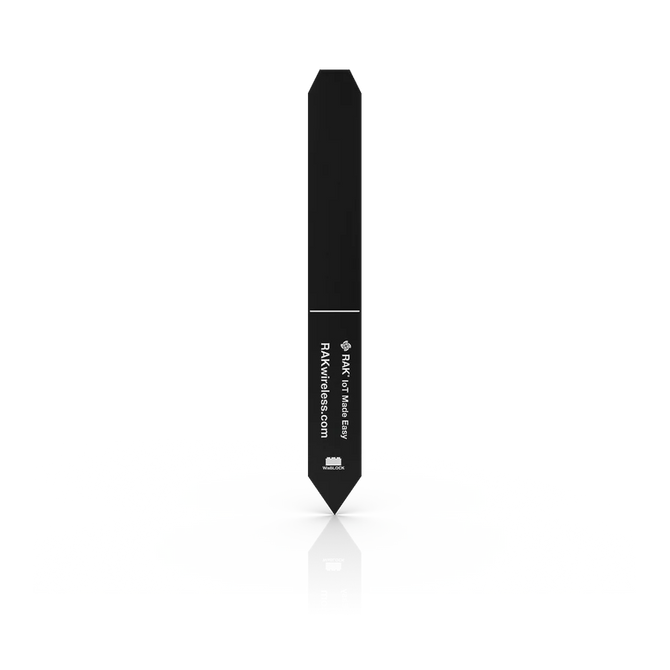

RAK12035:

• Separate connector PCB RAK12023 is required
• Measures soil moisture
• I2C address is programmable
• Calibration via software
• Chipset: Atmel ATTINY441-SSU
• Module size: 18.1 x 149 mm

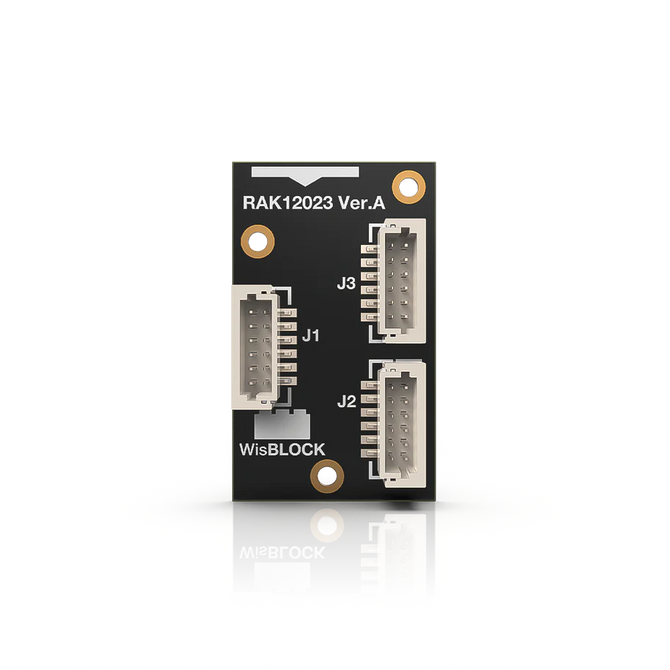

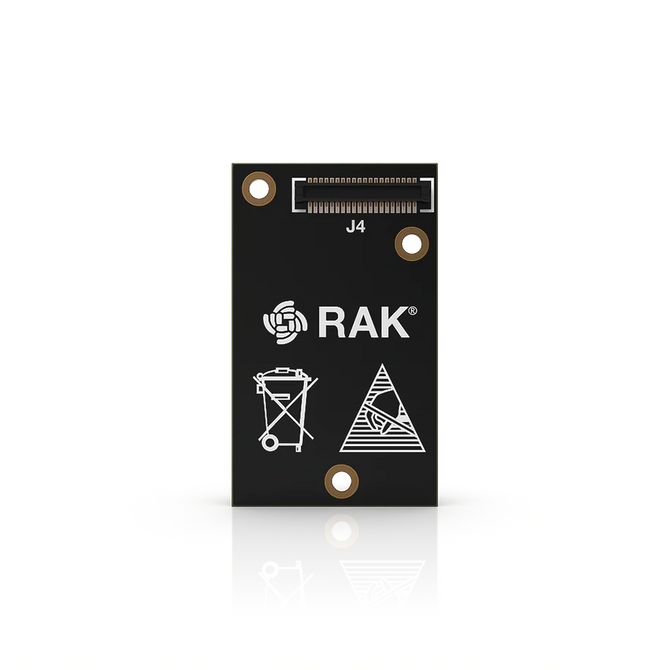

RAK12023:

• A Separate sensor PCB module RAK12035 is required
• Three (3) available connectors for the soil sensor PCB module RAK12035
• Module size: 15 x 25 mm
