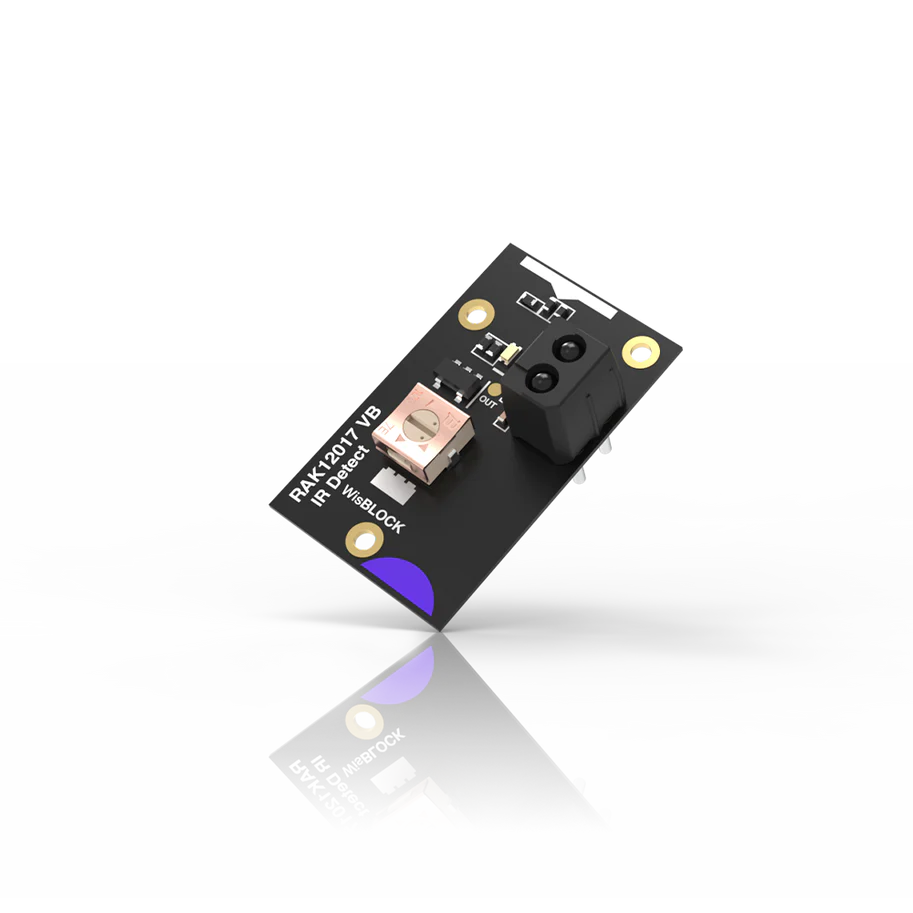

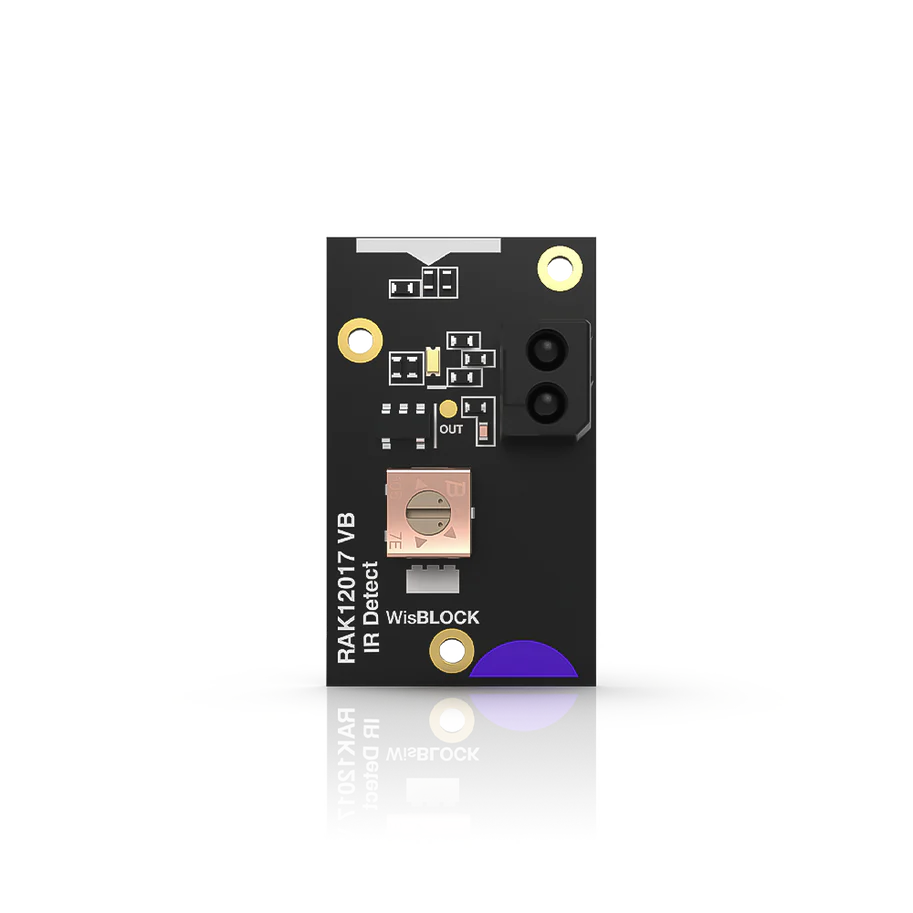

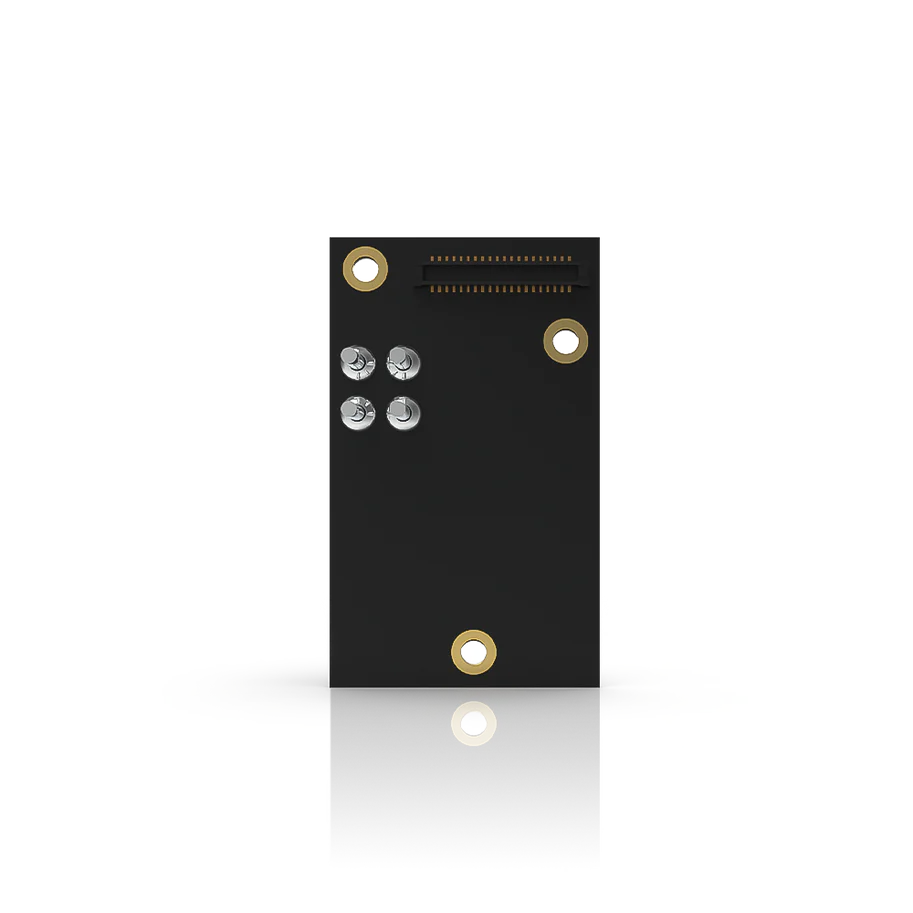

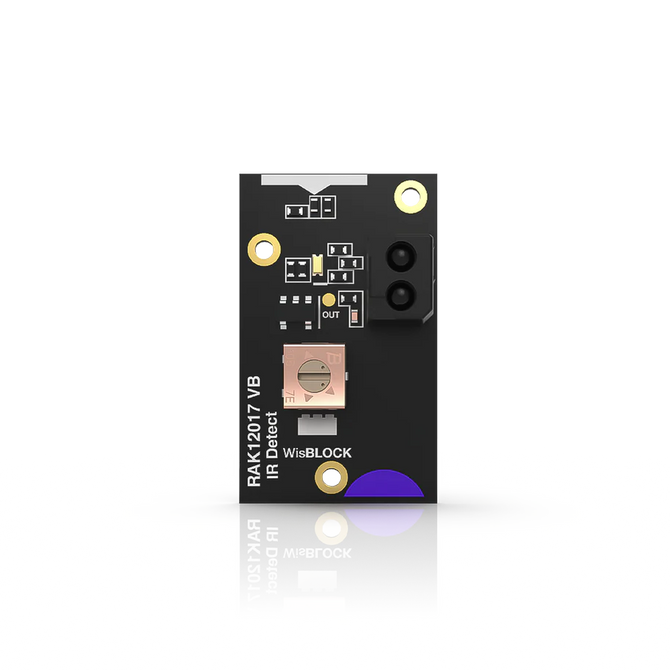

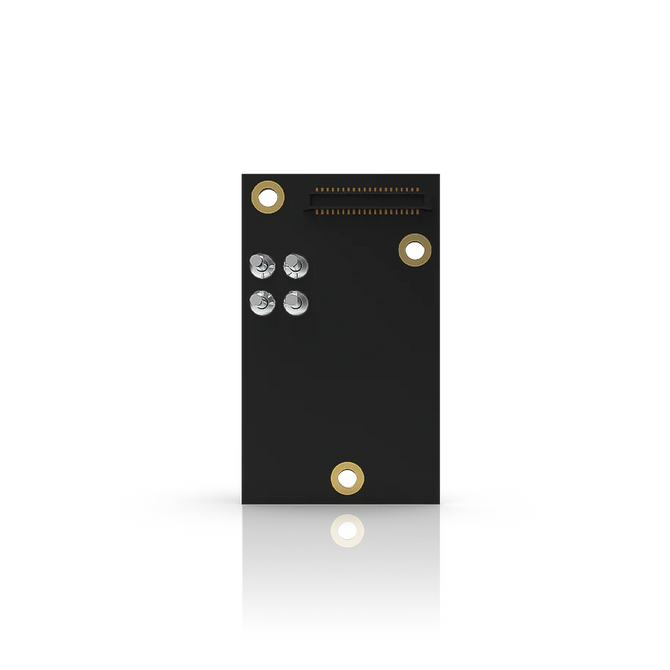

RAKwireless RAK12017

RAK12017 is an IR detection module. This module uses ITR20001 optical switch from Everlight to detect whether the IR Signal reflects. Sample applications of this module are: to identify if an object is approaching and check changes between black and white lines.

Key features:

• Detect whether IR Signal is reflected back
• λP=940 nm
• 3.3 V Power supply
• Current Consumption: < 21 mA
• Chipset: Everlight ITR20001
• Infrared Line Tracking Range: 1 cm to 5 cm
• Module Size: 15 mm x 25 mm
