RAKwireless RAK12003

RAK12003 WisBlock Infrared Temperature Sensor Module is part of the RAKwireless WisBlock Series. It can be used for an accurate contactless thermal measurement for applications such as General purpose industry, temperature control of moving and hard to reach parts, body temperature measurement, non-contact thermometer for mobile and IoT application.

Key features:

• I2C interface
• Object temperatures between -20 °C and 100 °C
• Accuracy ±0.2° C within the narrow object temperature range from 35 ˚C to 42 ˚C (medical applications)
• Factory calibrated
• 50 ° field of view
• -20 °C to 85 °C operational temperature range
• Refresh rate configurable between 0.5 Hz to 64 Hz
• Power Supply Voltage: 3.3 V - 3.6 V
• Sleep current: < 2.5 µA
• Chipset: Melexis MLX90632SLD-DCB-000-RE

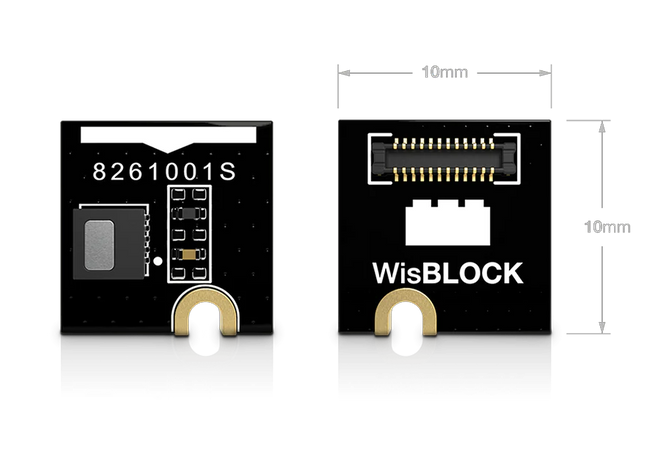

• Size: 10 x 10 mm
