RAKwireless RAK11722-EU868

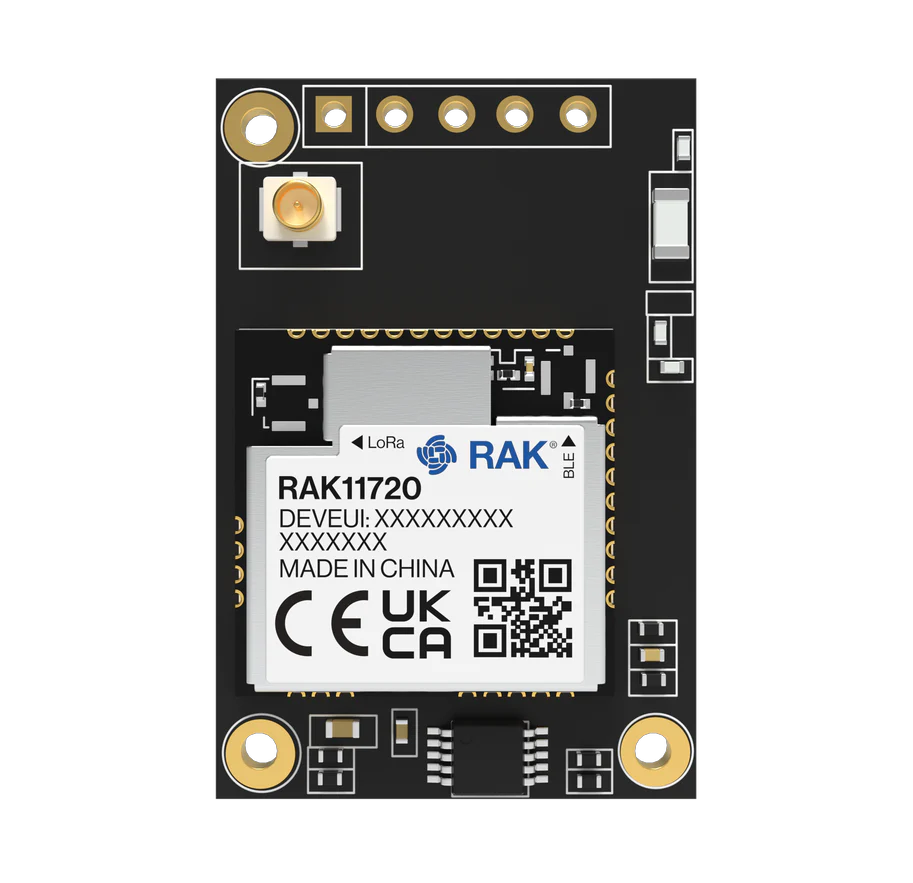

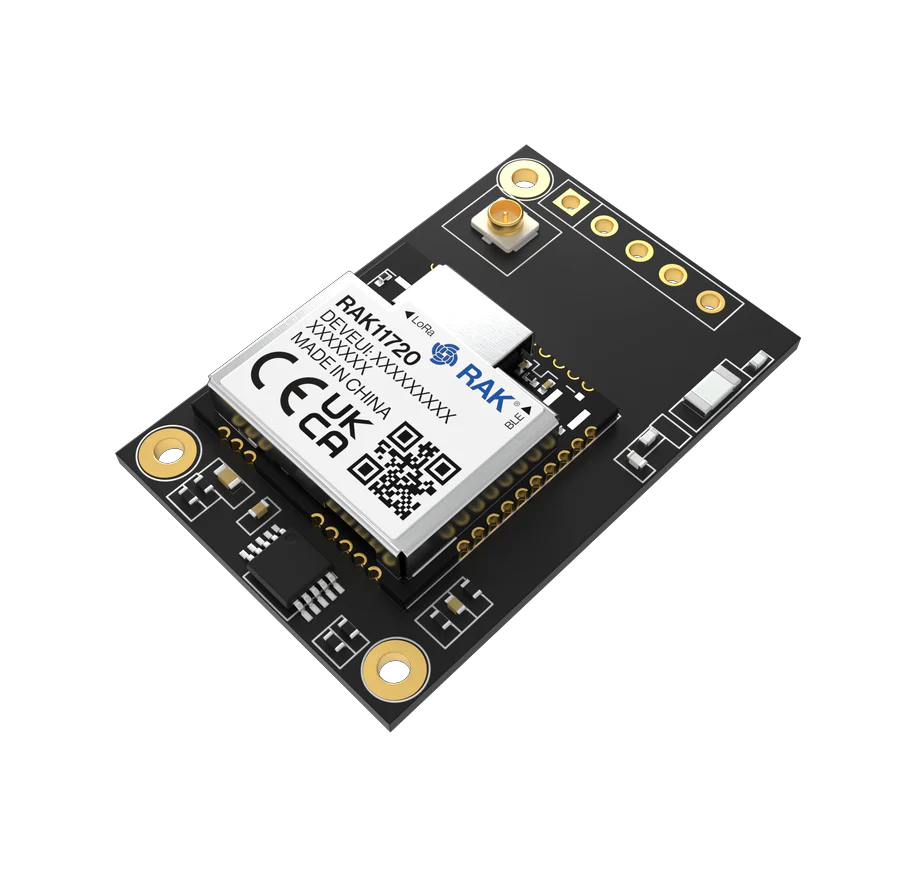

RAK11722 WisBlock Core module is a RAK11720 stamp module with an expansion PCB and connectors compatible with WisBlock Base. It allows an easy way to access the pins of the RAK11720 module to simplify development and testing processes. The module itself comprises a RAK11720 as its main component. The RAK11720 is a combination of an Ambiq Apollo3 Blue AMA3B1KK-KBR-B0 SoC MCU and an SX1262 LoRa chip. It features ultra-low power consumption of 2.37 uA during sleep mode and high LoRa output power up to 22 dBm during a transmission mode.

Also, it complies with LoRaWAN 1.0.3 protocols and supports LoRa point-to-point communication. The RF communication characteristic of the module (LoRa + BLE) makes it suitable for a variety of applications in the IoT field, such as home automation, sensor networks, building automation, and personal area network applications (health/fitness sensors, monitors, etc.).

Key features:

• Based on AMA3B1KK-KBR-B0 and SX1262
• ARM Cortex-M4F
• 1MB Flash and 348KB SRAM
• LoRaWAN 1.0.3 specification compliant
• Supported bands: EU868
• LoRaWAN Activation by OTAA/ABP
• LoRa Point-to-Point (P2P) communication
• Custom firmware using Arduino via RUI3 API
• Easy-to-use AT Command set via UART interface
• I/O ports: UART/I2C/SPI/ADC/GPIO
• Long-range - greater than 10 km with optimized antenna
• Ultra-low-power consumption of 2.37 μA in sleep mode
• Supply Voltage: 1.8 V ~ 3.6 V
• Temperature range: -40° C ~ 85° C
