RAKwireless RAK11310

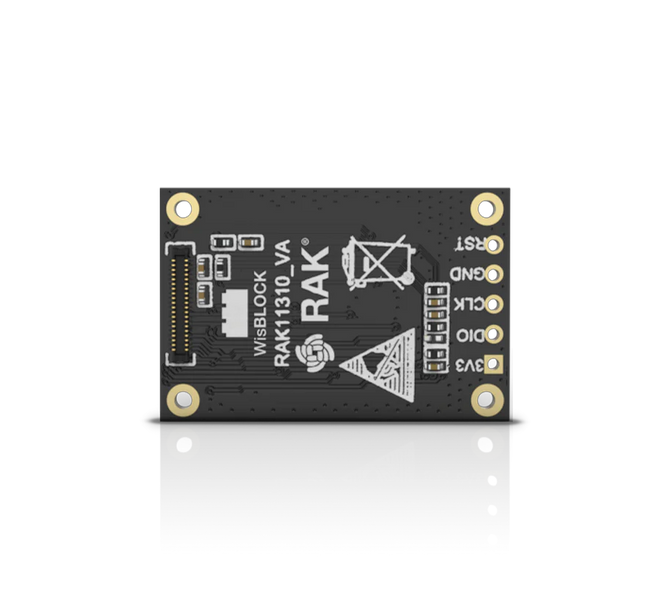

RAK11310 is a WisBlock Core module for the RAK hardware IoT platform WisBlock. It is powered by an RP2040 ARM microcontroller developed by the Raspberry Pi Foundation, combined with the SX1262 LoRa transceiver from Semtech. RAK11310 can be programmed via the Arduino™ IDE, PlatformIO or MicroPython. RAK11310 WisBlock Core module has a RAK11300 LoRa stamp module in it together with a high-quality connector that is compatible with WisBlock Base boards. It allows an easy way to access the pins of the RAK11310 module in order to simplify the development of IoT devices.

The module complies with LoRaWAN 1.0.2 protocols, and also supports LoRa point-to-point communication. The RF communication characteristic of the Lora module makes it suitable for a variety of applications in the IoT field such as home automation, sensor networks, building automation, personal area networks applications (health/fitness sensors, and monitors, etc.).

Key features:

• Based on RAK11300
• Uses the RP2040 as the main processor
• Semtech SX1262 low power high range LoRa transceiver
• LoRaWAN 1.0.2 protocol stack
• I/O ports: UART/I2C/GPIO/USB
• Serial Wire Debug (SWD) interface
• Module Size: 20 x 30 mm
• Supply Voltage: 2.0 V ~ 3.6 V
• Temperature Range: -20 °C ~ 70 °C
• Chipset: Raspberry Pi Foundation RP2040, Semtech SX1262
