RAKwireless - Lightning arrestor

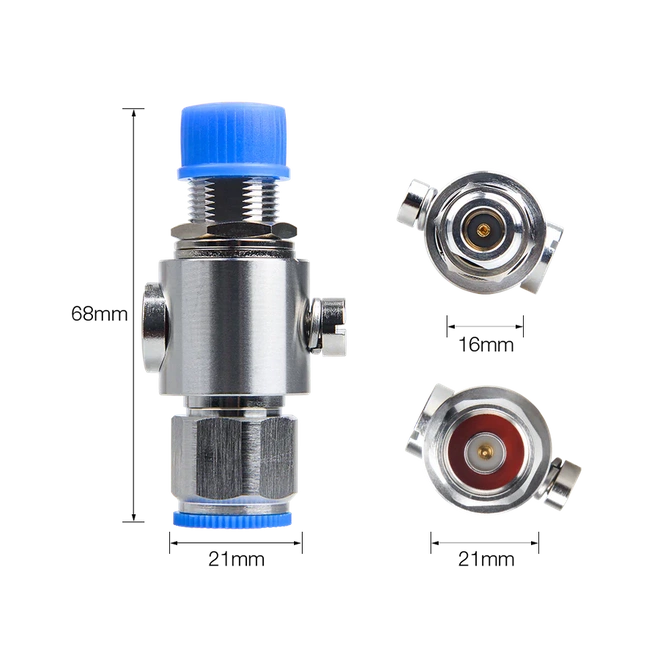

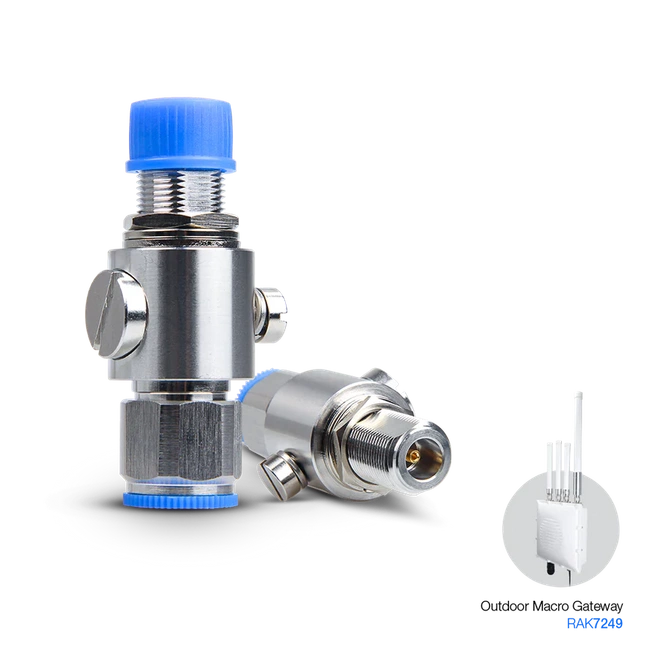

This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning. For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD). Recommended installation of a lightning arrestor on all N-type antenna terminals, including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and product data sheet.

Key Features:

• Connector Type: N-type male to N-type female,
• Impedance: 50 Ω.

Frequency range: 0-2700 MHz

• Power loss 0-2000 MHz: ≤ 0.2 dB,
• Ingress protection: IP67,
• Nominal discharge current In: 10 kA,
• Maximum discharge current Imax: 20 kA,
• Voltage protection Level Up: ≤ 1200 V.

Packaging: product weight: approximately 180g, product dimension: 68mm x 21mm.
