RAK7267 WisGate Soho Pro Gateway - with DC cable

ChipMT7628
Channels8
RAM memory256 MB DDR2
FirmwareWisGateOS 2
Ingress ProtectionIP67
MaterialABS
Kabel zasilający
excl. VAT
916,76 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
SKU: 715103
Series
TechnologyTechnology
WiFi 4
LoRaWAN 1.0.3
GNSS
LTE
ChipChip
MT7628
PositioningPositioning
External
Internal
ChannelsChannels
8
RAM memoryRAM memory
256 MB DDR2
FirmwareFirmware
WisGateOS 2
Product length in millimetersProduct length in millimeters
180
Product width in millimetersProduct width in millimeters
130
Product height in millimetresProduct height in millimetres
60
Ingress ProtectionIngress Protection
IP67
Temperature rangeTemperature range
-30...+55°C
VoltageVoltage
9 ~ 36 V DC
MaterialMaterial
ABS
Kabel zasilający
Kabel DC
Search

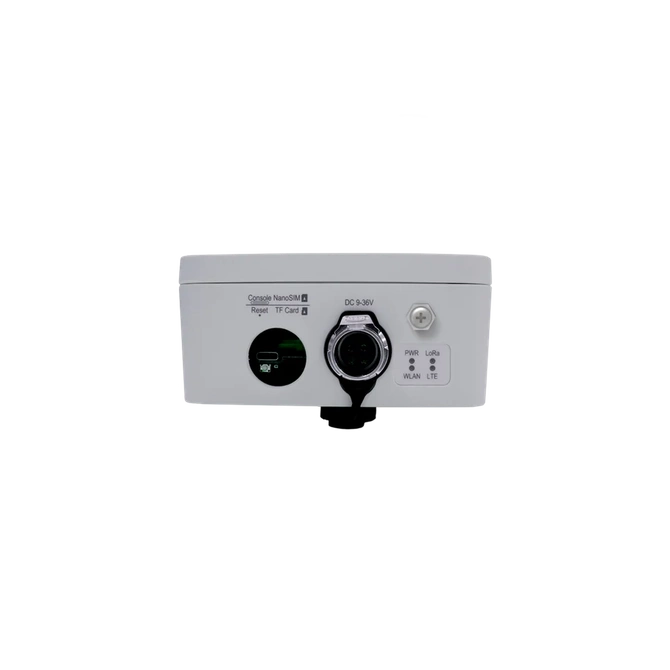

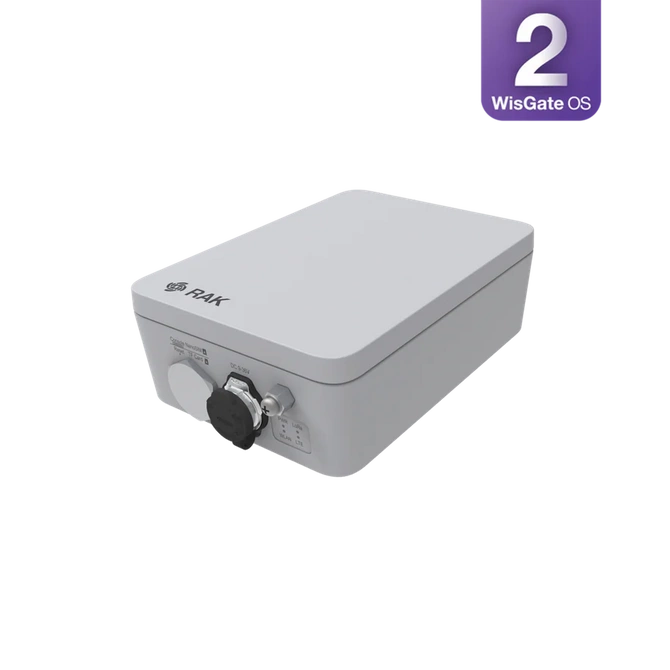

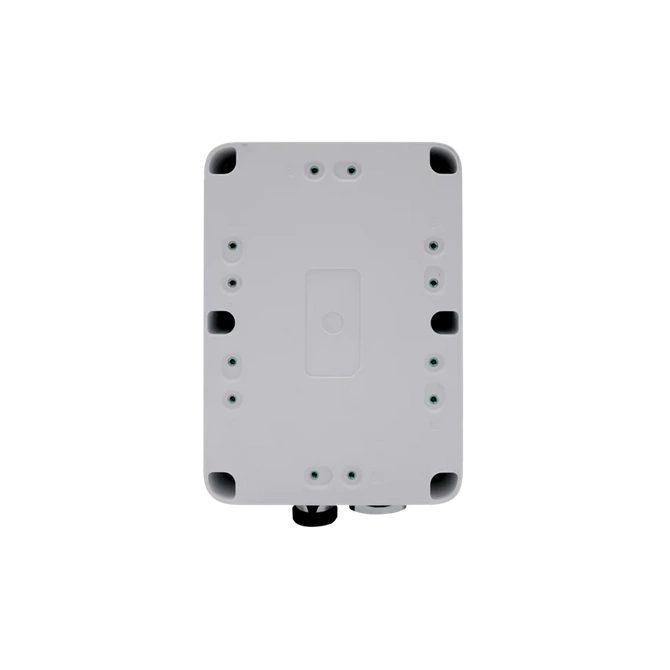

RAK7267 WisGate Soho Pro Gateway

The RAK7267 WisGate Soho Pro is a versatile and innovative 8-channel LoRaWAN gateway designed to thrive in both indoor and outdoor settings. With its robust IP65-rated Unify enclosure, this gateway ensures optimal performance even in the harshest weather conditions.

Key Features:

  • Fully Integrated Antennas: Comes with built-in antennas for LoRa, LTE, Wi-Fi, and GPS. Its all-in-one, compact design enhances weather resistance and simplifies installation.
  • Flexible Power Options: Compatible with RAK Solar Battery Kits, the WisGate Soho Pro supports sustainable energy solutions and can operate efficiently in remote locations without traditional power sources. Supports DC 9-36 V power input.
  • Enhanced Connectivity: Featuring Cat-1 LTE, this gateway offers reliable, cost-efficient connectivity options, eliminating the need for ethernet backhaul and simplifying deployment in areas where ethernet is not viable.
  • Advanced Operating System: Powered by WisGateOS 2, based on the latest OpenWrt kernel, it provides enhanced security, customizable extensions, and remote management capabilities via WisDM.

Setting up the WisGate Soho Pro is straightforward and requires just a single power cable for connection to external solar or DC power supplies. The RAK7267 WisGate Soho Pro Gateway supports a versatile input power range of 9 to 36 VDC, accommodating the commonly used 12V and 24V power standards.

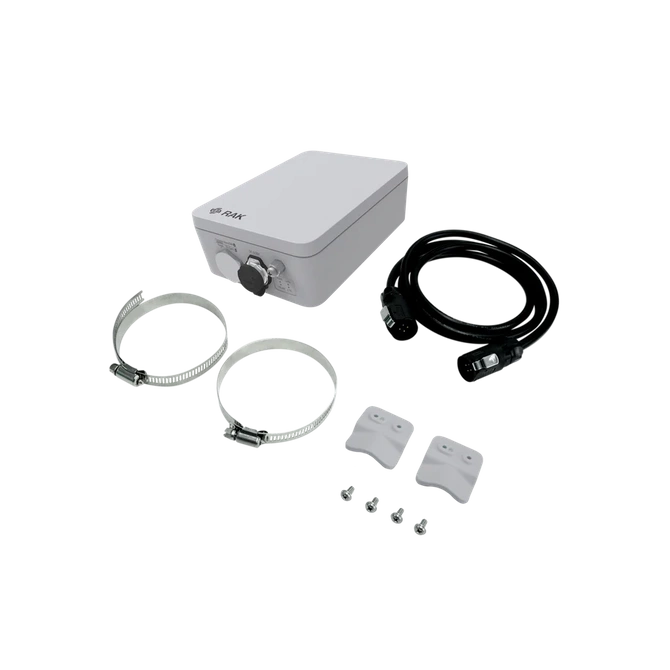

Package Inclusion:

  • 1 pc RAK7267 WisGate Soho Pro,
  • 2 pcs Vertical Mounting Kit,
  • 2 pcs Pole Mounting Brackets,
  • 1 pcs 1.5 meter DC cable.
