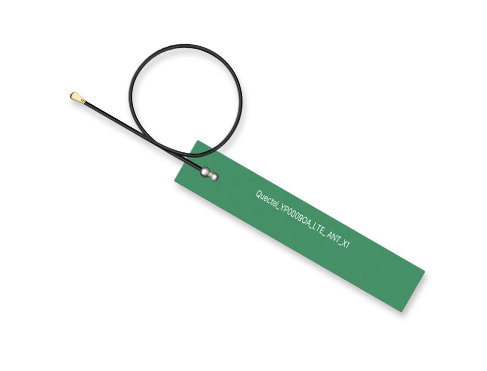

Quectel YP0009OA - 5G antenna

Quectel YP0009OA - 5G antenna

Antenna connector typeIPEX MHF 4L
Cable length (in milimeters)202
MountingAdhesive
Technology5G - Sub-6 GHz
PositioningInternal
Size
uniwersalny
excl. VAT
2,33 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YP0009OA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YP0009OA
Antenna connector typeAntenna connector type
IPEX MHF 4L
Cable length (in milimeters)
202
MountingMounting
Adhesive
TechnologyTechnology
5G - Sub-6 GHz
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
78.6
Product width in millimetersProduct width in millimeters
14.2
Temperature rangeTemperature range
-40...+85°C
Frequency
600 - 6000 MHz
Max. VSWR
5,3
Max. gain
5,5 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YP0009OA

YP0009OA is an embedded PCB antenna from Quectel, supporting 5G standard, adhesive mounted. It supports frequencies from 600–6000 MHz range. Product dimensions are 78,6 × 14,2 mm, 202 mm cable with an IPEX MHF 4L connector. The operating temperature range of the antenna is -40...+85°C.
