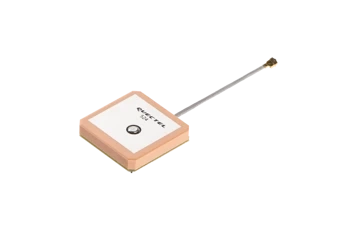

Quectel YG0015AA - GNSS antenna

Quectel YG0015AA - GNSS antenna

Antenna connector typeIPEX MHF 1
MountingPin mounted
Cable length (in milimeters)48
Antenna typeCeramic
TechnologyGNSS
PositioningInternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
Find out in which store you can check the product and buy it right away
Quectel YG0015AA - GNSS antenna
Quectel YG0015AA - GNSS antenna
uniwersalny
Safe shopping
Compare
Product Data Sheet - YGO015AA
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YG0015AA
Producer code
5900000774640
Antenna connector typeAntenna connector type
IPEX MHF 1
MountingMounting
Pin mounted
Cable length (in milimeters)
48
Antenna typeAntenna type
Ceramic
TechnologyTechnology
GNSS
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
25
Product width in millimetersProduct width in millimeters
25
Product height in millimetresProduct height in millimetres
7,7
Temperature rangeTemperature range
-40...+85°C
Frequency
1575.42 - 1602 MHz
Max. VSWR
2
Max. gain
0,47 dBi
Polarisation
RHCP
Radiation pattern
Directional
Impedance
50 Ohm
Search

Quectel YG0015AA

YG0015AA is a ceramic embedded antenna from Quectel, supporting GNSS navigation systems, pin mounted. It supports frequencies from 1575.42–1602 MHz. The antenna dimensions 25 × 25 × 7.76 mm, cable 48 mm, IPEX MHF 1 connector. The operating temperature of the device covers the range -40...+85°C.
