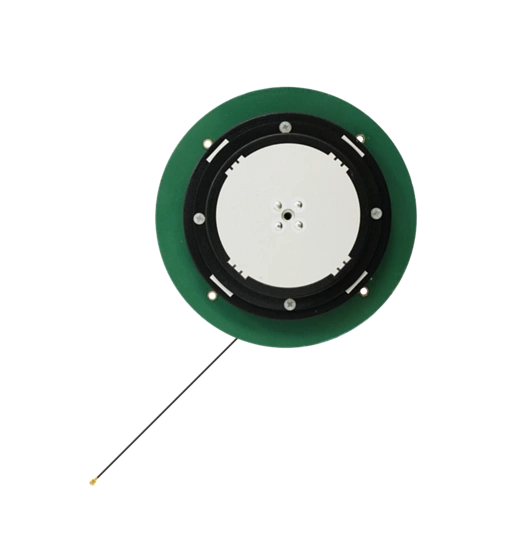

Quectel YFGN001H3AM - GNSS antenna

Quectel YFGN001H3AM - GNSS antenna

Antenna connector typeIPEX MHF 1
MountingScrew
TechnologyGNSS
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YFGN001H3AM
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YFGN001H3AM
Antenna connector typeAntenna connector type
IPEX MHF 1
Cable length (in milimeters)
220
MountingMounting
Screw
TechnologyTechnology
GNSS
PositioningPositioning
External
Product diameter in millimetresProduct diameter in millimetres
122
Product height in millimetresProduct height in millimetres
24.2
Temperature rangeTemperature range
-40...+85°C
Frequency
1164 - 1300 MHz
1525 - 1606 MHz
Max. VSWR
1,41
Max. gain
5,6 dBi
Polarisation
RHCP
Radiation pattern
Directional
Impedance
50 Ohm
Search

Quectel YFGN001H3AM

YFGN001H3AM is an external antenna from Quectel, supporting GNSS navigation systems, screw mounted. It works on frequencies from the 1164–1300 MHz, 1525–1606 MHz ranges. Product dimensions are Φ 122 mm × 24.2 mm, cable 220 mm, with a IPEX MHF 1 connector.
