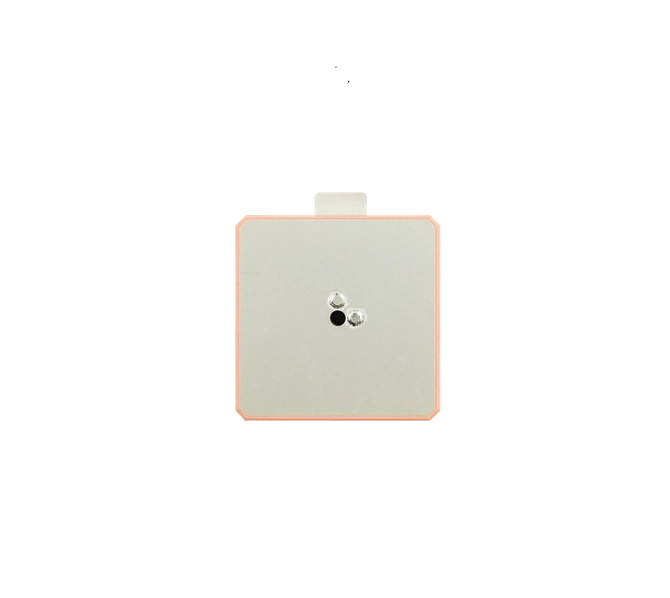

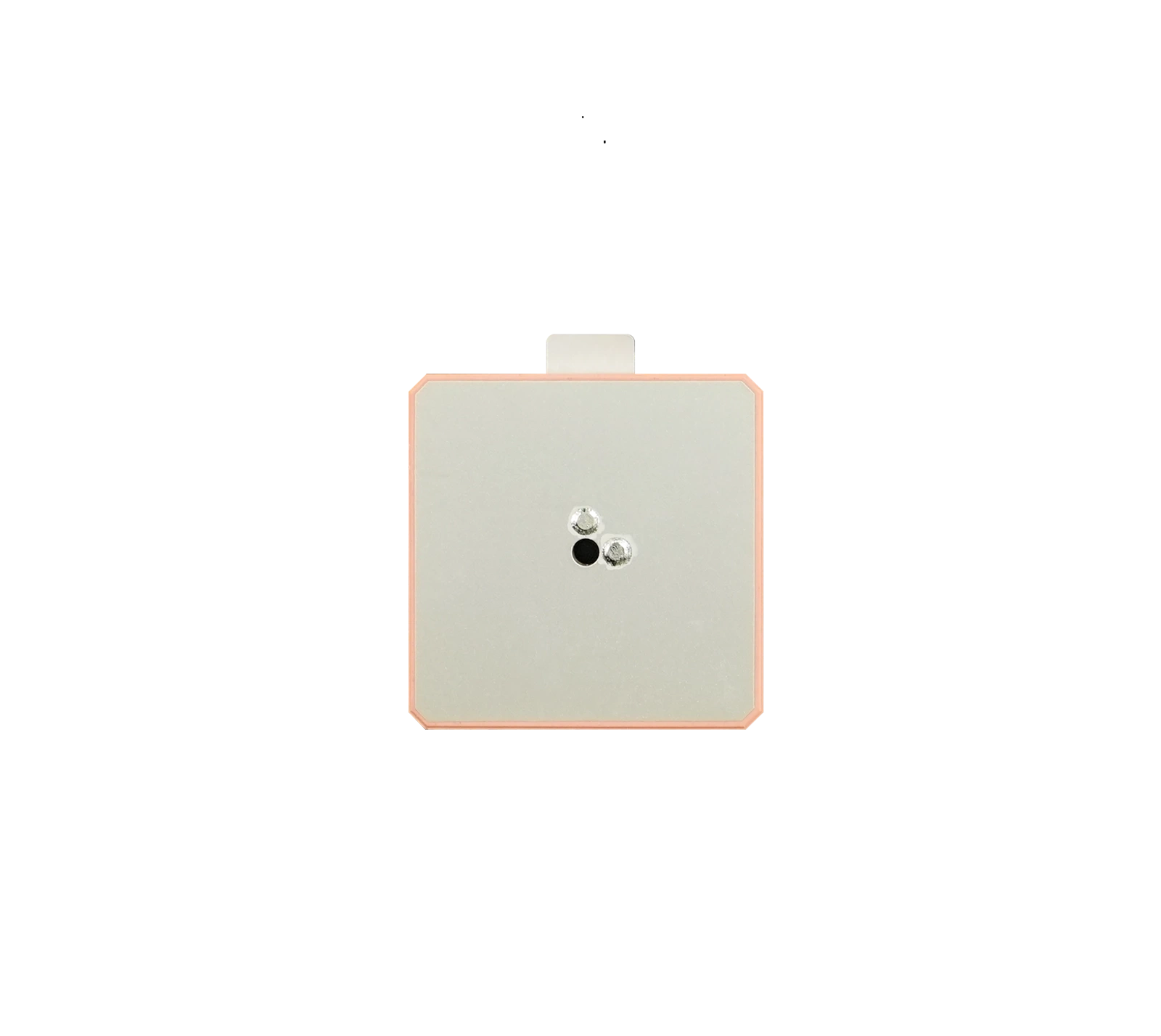

Quectel YFGC040WWA - GNSS antenna

Quectel YFGC040WWA - GNSS antenna

Antenna connector typeSMD
MountingAdhesive
Antenna typeCeramic
TechnologyGNSS
PositioningInternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product data sheet - YFGC040WWA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YFGC040WWC
Antenna connector typeAntenna connector type
SMD
MountingMounting
Adhesive
Antenna typeAntenna type
Ceramic
TechnologyTechnology
GNSS
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
40More
Długość towaru w centymetrach
Product width in millimetersProduct width in millimeters
40
Product height in millimetresProduct height in millimetres
4
Temperature rangeTemperature range
-40...+85°C
Frequency
1559 - 1606 MHz
Max. VSWR
1,3
Max. gain
3,5 dBi
Polarisation
RHCP
Radiation pattern
Directional
Impedance
50 Ohm
Search

Quectel YFGC040WWC

YFGC040WWC is a ceramic embedded antenna from Quectel, supporting GNSS navigation systems, adhesive mounted. It supports frequencies from 1559–1606 MHz. The antenna dimensions 40 × 40 × 4 mm. The operating temperature of the device covers the range -40...+85°C.
