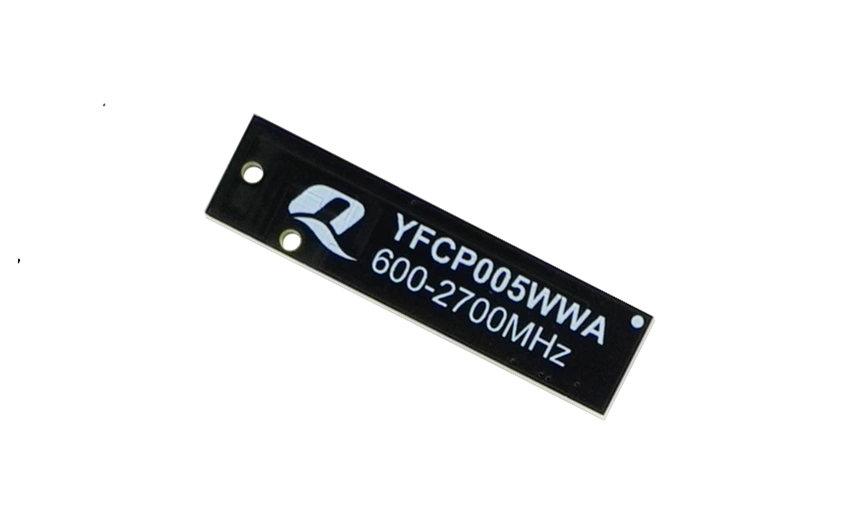

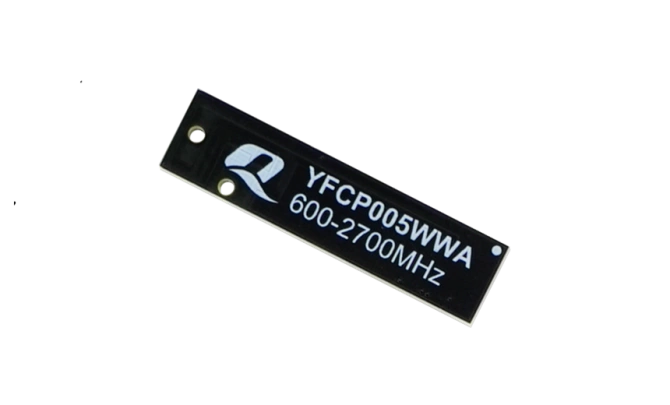

Quectel YFCP005WWA - 4G antenna

Quectel YFCP005WWA - 4G antenna

Antenna connector typeSMD
Antenna typePCB
MountingSMD
TechnologyLTELTE-AUMTSGSMNB-IoT
PositioningInternal
Size
uniwersalny
excl. VAT
1,76 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YFCP005WWA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YFCP005WWA
Antenna connector typeAntenna connector type
SMD
Antenna typeAntenna type
PCB
MountingMounting
SMD
TechnologyTechnology
LTE
LTE-A
UMTS
GSM
NB-IoT
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
36
Product width in millimetersProduct width in millimeters
9
Product height in millimetresProduct height in millimetres
3
Temperature rangeTemperature range
-40...+85°C
Frequency
600 - 960 MHz
1710 - 2690 MHz
Max. VSWR
16,2
Max. gain
2,9 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YFCP005WWA

YFCP005WWA is an embedded PCB antenna from Quectel, supporting 4G standard, SMD mounted. The antenna provides 3G/2G backward compatibility support. It supports 600–960 MHz, 1710–2690 MHz frequency bands. The antenna dimensions are 36 × 9 × 3 mm. The operating temperature of the device covers the range -40...+85°C.
