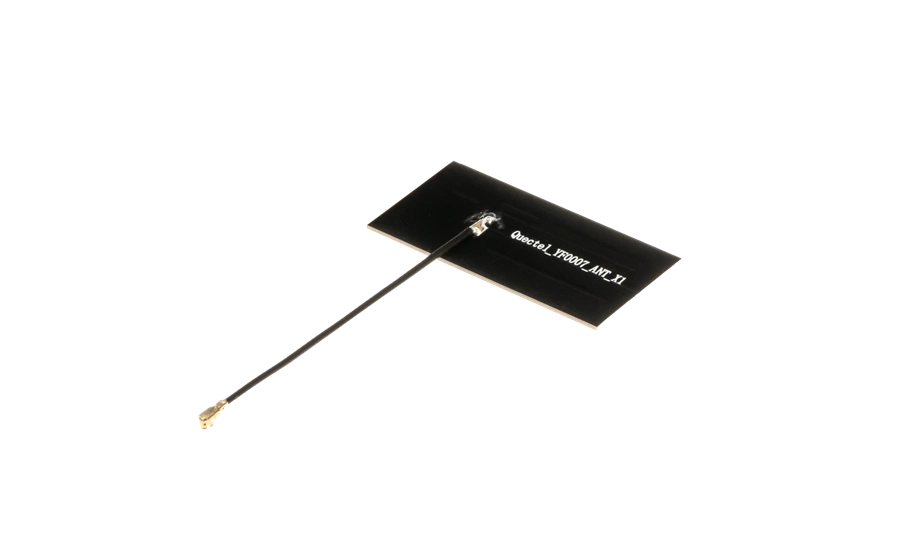

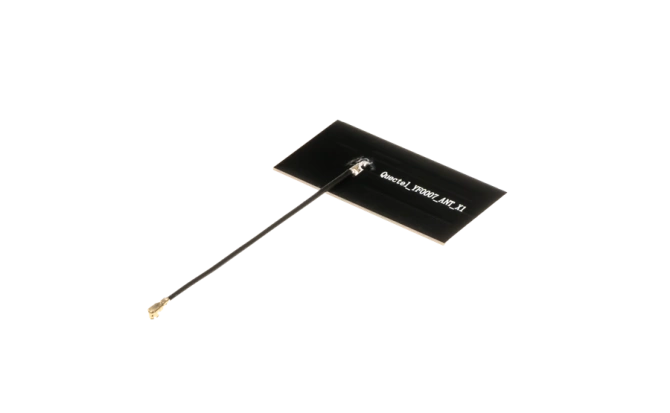

Quectel YF0007KA - 4G antenna

Quectel YF0007KA - 4G antenna

Antenna connector typeIPEX MHF 1
Antenna typePCB
MountingAdhesive
TechnologyLTE
PositioningInternal
Size
uniwersalny
excl. VAT
2,33 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YF0007KA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YF0007KA
Antenna connector typeAntenna connector type
IPEX MHF 1
Cable length (in milimeters)
74,5
Antenna typeAntenna type
PCB
MountingMounting
Adhesive
TechnologyTechnology
LTE
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
50
Product width in millimetersProduct width in millimeters
25
Product height in millimetresProduct height in millimetres
0.8
Temperature rangeTemperature range
-40...+85°C
Frequency
600 - 960 MHz
1427.9 - 1495.9 MHz
1710 - 2690 MHz
Max. VSWR
6,8
Max. gain
3,1 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YF0007KA

YF0007KA is an embedded PCB antenna from Quectel, supporting the 4G standard, adhesive-mounted. The antenna provides 3G/2G/LPWA backward compatibility support. It supports frequencies from 600–960 MHz, 1427.9–1495.9 MHz, 1710–2690 MHz range. Product dimensions are 50 × 25 × 0.8 mm, 74,5 mm cable with an IPEX MHF 1 connector. The operating temperature range of the antenna is -40...+85°C.
