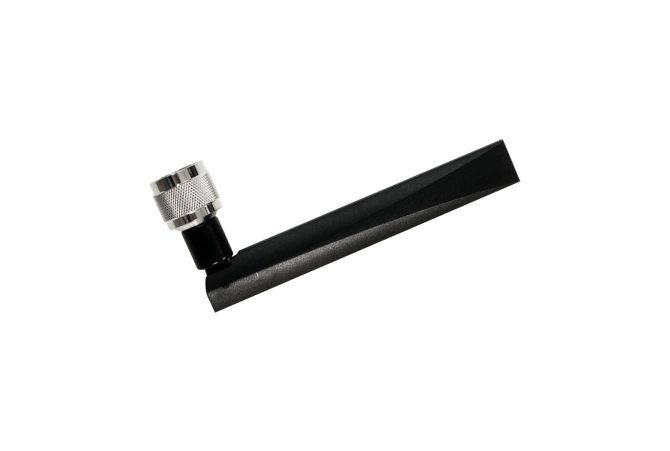

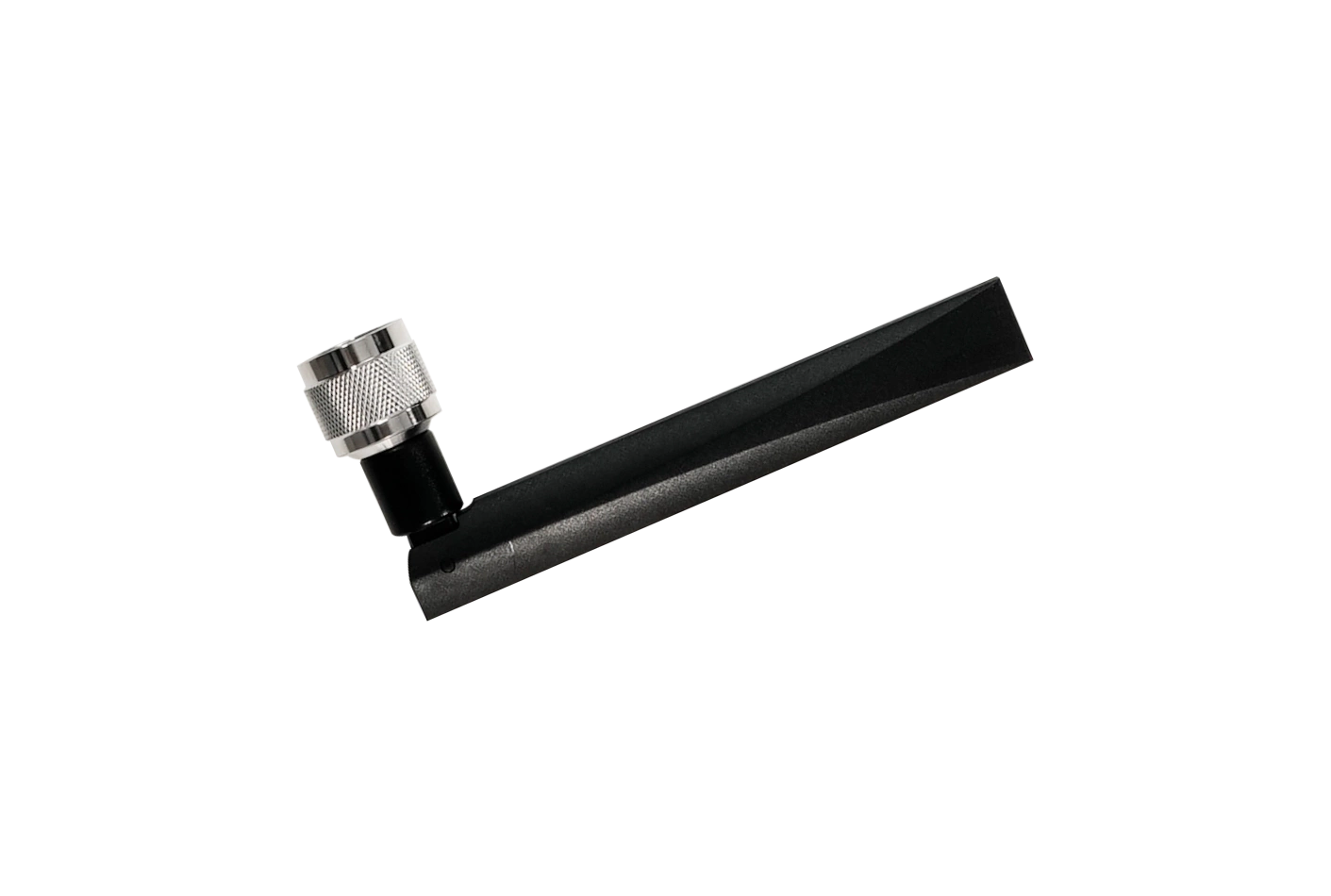

Quectel YECT104WAAM - 5G antenna

Quectel YECT104WAAM - 5G antenna

Antenna connector typeN-type male
MountingTerminal
Technology5G - Sub-6 GHz
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YECT104WAAM
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YECT104WAAM
Antenna connector typeAntenna connector type
N-type male
MountingMounting
Terminal
TechnologyTechnology
5G - Sub-6 GHz
PositioningPositioning
External
Product diameter in millimetresProduct diameter in millimetres
20
Product height in millimetresProduct height in millimetres
145
Frequency
600 - 6000 MHz
Temperature rangeTemperature range
-40...+85°C
Max. VSWR
6,1
Max. gain
5,6 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YECT104WAAM

YECT104WAAM is an external antenna from Quectel, supporting 5G standard, with a male-type N connector. It supports frequencies from 600–6000 MHz range. Product dimensions are Φ 20 mm × 145 mm. The operating temperature range of the antenna is -40...+85°C.
