Quectel YECA000M1A - 4G antenna

Quectel YECA000M1A - 4G antenna

Antenna connector typeSMA male
MountingAdhesive
TechnologyLTE
PositioningExternal
Size
uniwersalny
excl. VAT
11,07 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YECA000M1A
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YECA000M1A
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
1460
MountingMounting
Adhesive
TechnologyTechnology
LTE
PositioningPositioning
External
Product diameter in millimetresProduct diameter in millimetres
99,98
Product height in millimetresProduct height in millimetres
17,46
Temperature rangeTemperature range
-40...+85°C
Frequency
700 - 960 MHz
1710 - 2690 MHz
Max. VSWR
4,2
Max. gain
2,9 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Ingress ProtectionIngress Protection
IP68
IP69K
IK10
Search

Quectel YECA000M1A

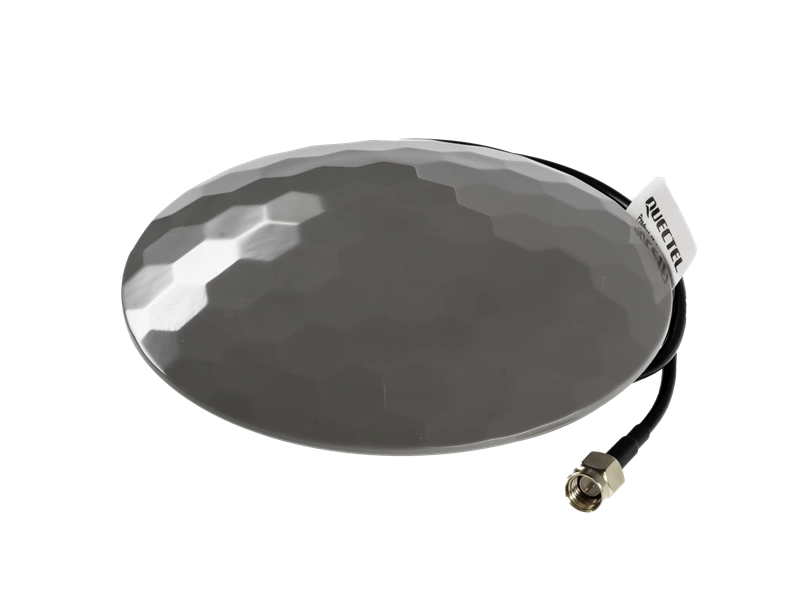

YECA000M1A is an external antenna from Quectel, supporting 4G standard, adhesive mounted. It supports frequencies from 700–960 MHz, 1710–2690 MHz range. Product dimensions are Φ 99.98 × 17.46 mm, cable 1460 mm, male-type SMA connector. The operating temperature range of the antenna is -40...+85°C.
