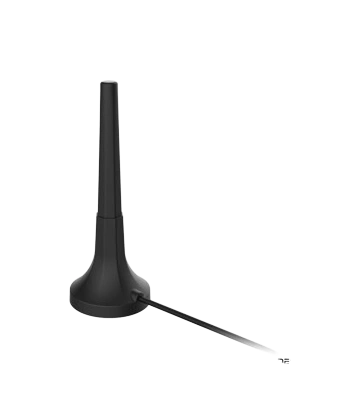

Quectel YEBM001L1AH - WiFi antenna

Quectel YEBM001L1AH - WiFi antenna

Antenna connector typeSMA male
MountingMagnetic
Cable length (in milimeters)1000
TechnologyWiFi
PositioningExternal
Size
uniwersalny
excl. VAT
4,70 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YEBM001L1AH
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YEBM001L1AH
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Magnetic
Cable length (in milimeters)
1000
TechnologyTechnology
WiFi
PositioningPositioning
External
Product diameter in millimetresProduct diameter in millimetres
30
Product height in millimetresProduct height in millimetres
83,2
Temperature rangeTemperature range
-40...+85°C
Frequency
2400 - 2500 MHz
5150 - 5850 MHz
5925 - 7125 MHz
Max. VSWR
2,3
Max. gain
4,7 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Ingress ProtectionIngress Protection
IP67
Search

Quectel YEBM001L1AH

YEBM001L1AH is an external antenna from Quectel, supporting WiFi 2.4 & 5 GHz, magnetic mounted. It supports 2400–2500 MHz, 5150–5850 MHz, 5925–7125 MHz frequency ranges. Product dimensions are Φ30 × 83.2 mm, cable 1000 mm, with a male SMA connector. The operating temperature range of the antenna is -40...+85°C.
