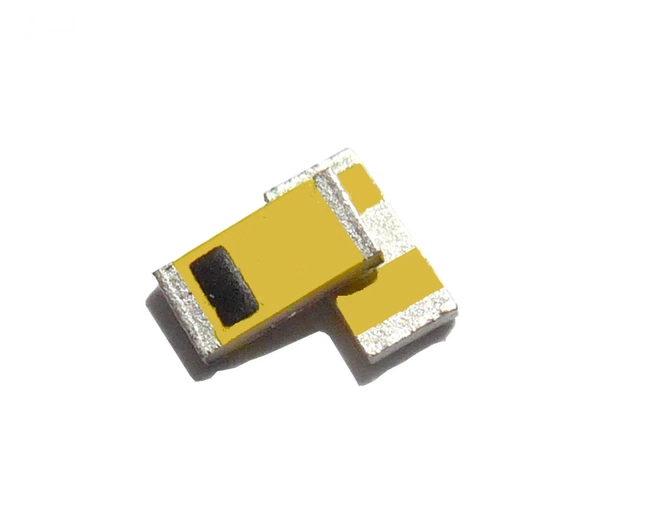

Quectel YCGS025AA - GNSS+WiFi antenna

Quectel YCGS025AA - GNSS+WiFi antenna

Antenna connector typeSMD
Antenna typeCeramic
MountingSMD
TechnologyWiFiGNSS
PositioningInternal
Size
uniwersalny
excl. VAT
11,27 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YCGS025AA
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YCGS025AA
Antenna connector typeAntenna connector type
SMD
Antenna typeAntenna type
Ceramic
MountingMounting
SMD
TechnologyTechnology
WiFi
GNSS
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
3.2
Product width in millimetersProduct width in millimeters
1.6
Temperature rangeTemperature range
-40...+85°C
Product height in millimetresProduct height in millimetres
0.5
Frequency
2400 - 2500 MHz
1575 MHz (L1)
5150 - 5850 MHz
Max. VSWR
3
Max. gain
2,3 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YCGS025AA

YCGS025AA is an embedded SMD antenna from Quectel, supporting WiFi 2.4 & 5 GHz and GNSS, SMD. It supports 1575.42 MHz; 2400–2500 MHz; 5150–5850 MHz frequency ranges. Product dimensions are 3.2 × 1.6 × 0.5mm, with an SMD connector. The operating temperature range of the antenna is -40...+85°C.
