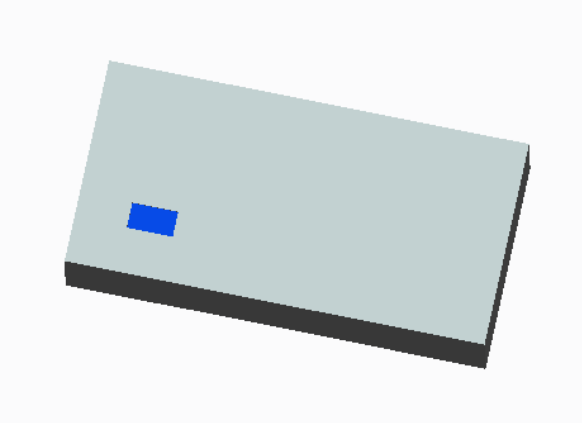

Quectel YC0013AA

YC0013AA is a ceramic embedded antenna from Quectel, supporting GNSS navigation systems, matching the L1 series modules, SMD mounted. It supports frequencies from 1559 - 1606 MHz. The antenna dimensions 3.2 x 1.6 x 0.6 mm. The operating temperature of the device covers the range -40...+85°C.

A very small GNSS embedded SMD ceramic antenna. By using the main device PCB as its ground plane, this antenna is extremely efficient despite its small size. Ideally mounted on the center edge of a ground-plane, it can be tuned for different PCB lengths and environments by changing the PI matching circuit values at the feed point.
