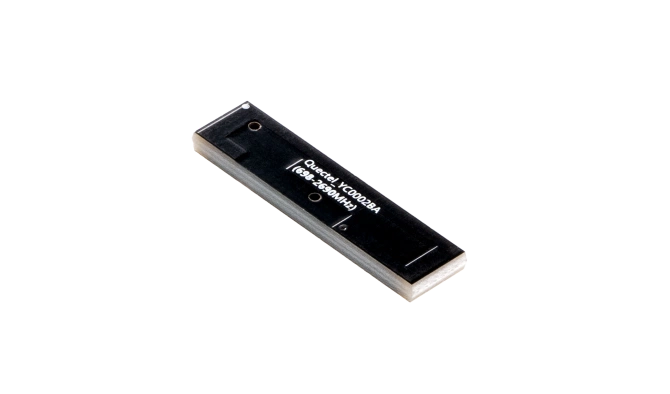

Quectel YC0002BA - 4G antenna

Quectel YC0002BA - 4G antenna

Antenna connector typeSMD
Antenna typeFR4
MountingSMD
TechnologyLTELTE-AGSMNB-IoT
PositioningInternal
Size
uniwersalny
excl. VAT
1,76 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YC0002BA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YC0002BA
Antenna connector typeAntenna connector type
SMD
Antenna typeAntenna type
FR4
MountingMounting
SMD
TechnologyTechnology
LTE
LTE-A
GSM
NB-IoT
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
42
Product width in millimetersProduct width in millimeters
10
Product height in millimetresProduct height in millimetres
3
Temperature rangeTemperature range
-40...+85°C
Frequency
700 - 960 MHz
1710 - 2690 MHz
Max. VSWR
7
Max. gain
4,4 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

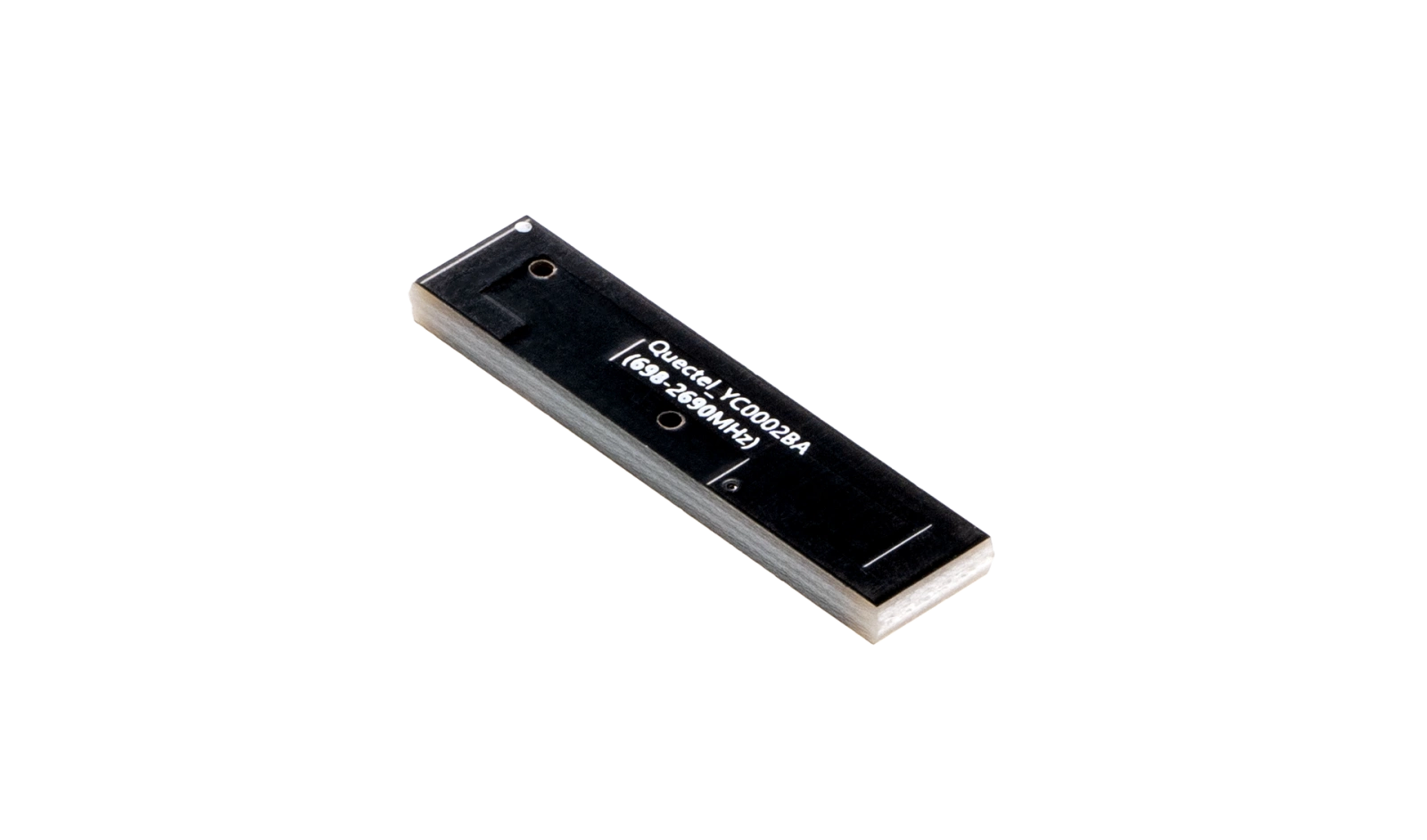

Quectel YC0002BA

YC0002BA is an embedded antenna from Quectel, supporting 4G standard, SMD mounted. It supports 700–960 MHz, 1710–2690 MHz frequency ranges. Product dimensions are 42 × 10 × 3 mm. The operating temperature range of the antenna is -40...+85°C.
