Quectel SC200L-EU TE-A

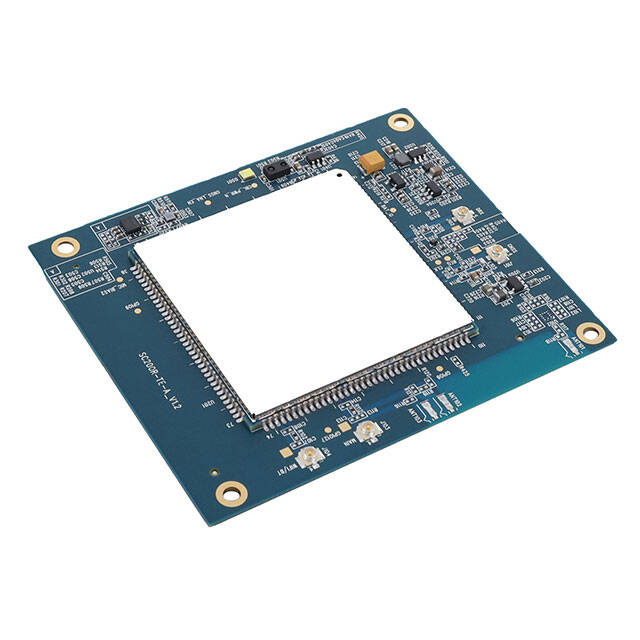

Smart evaluation kit with SC200L-EU module on an adapter board, created by Quectel.

SC200L-EU is a Smart module by Quectel, with LCC+LGA form factor, supporting LTE standards of communication with fallback in 3G and 2G. Max data rate: 150Mbps (DL), 50Mbps (UL). The module also supports Bluetooth 5.0 and WiFi 5, as well as GNSS navigation (GPS/BeiDou or GPS/BeiDou). Equipped with 1 GB LPDDR3 + 8 GB eMMC of embedded memory.

Supports frequency bands:
• LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28
• LTE-TDD: B38/ 40/ 41
• WCDMA: B1/ 5/ 8
• GSM/EDGE: 900/1800 MHz
• BT: 5.0 (BR/ EDR + BLE)
• WLAN: 2.4 & 5 GHz, 802.11a/ b/ g/ n/ ac
