Quectel RM520N-EU - 5G module
Form factorM.2
Max. data transfer3,4 Gbps (DL) NSA900 Mbps (UL) SA
Technology5G - Sub-6 GHzLTE-AGNSSUMTS
Product width in millimeters30
Product length in millimeters52Log in
Details
Parametry
Find similar products
Brand
Symbol
RM520NEUDA-M20-SGASA
Producer code
5900000815916
Series
Form factor
M.2
Max. data transfer
3,4 Gbps (DL) NSA
900 Mbps (UL) SA
Technology
5G - Sub-6 GHz
LTE-A
GNSS
UMTS
Fallback
4G
3G
Temperature range
-30...+75°C
Product height in millimetres
2.3
Product width in millimeters
30
Product length in millimeters
52
Voltage
3,135 - 4,4V
Region
EMEA
Brazil
APAC

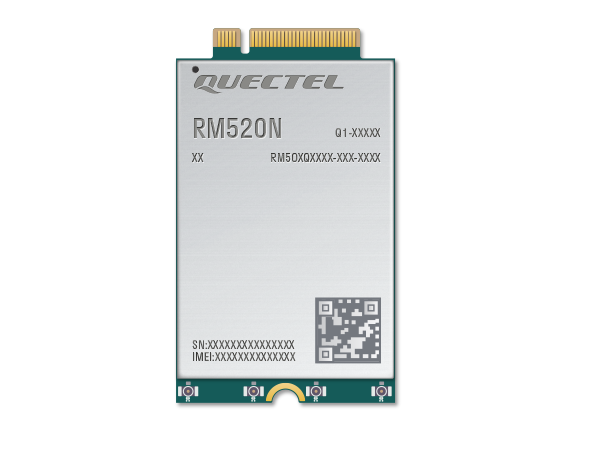

Quectel RM520N-EU
A 5G module by Quectel, with M.2 form factor, supporting max data rate: 2.4 Gbps (DL), 900 Mbps (UL) in SA mode and 3.4 Gbps (DL), 550 Mbps (UL) in NSA mode. Fallback in 4G and 3G. The module also features support for GNSS navigation (GPS/GLONASS/BDS/Galileo/QZSS).
-
Supports frequency bands:
- 5G NR: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78
- LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71
- LTE-TDD: B38/ 40/ 41/ 42/ 43
- WCDMA: B1/ 5/ 8
The product can operate in temperature range of -30... +75°C, and it's power supply is 3.135 - 4.4V, typical 3.7V.
