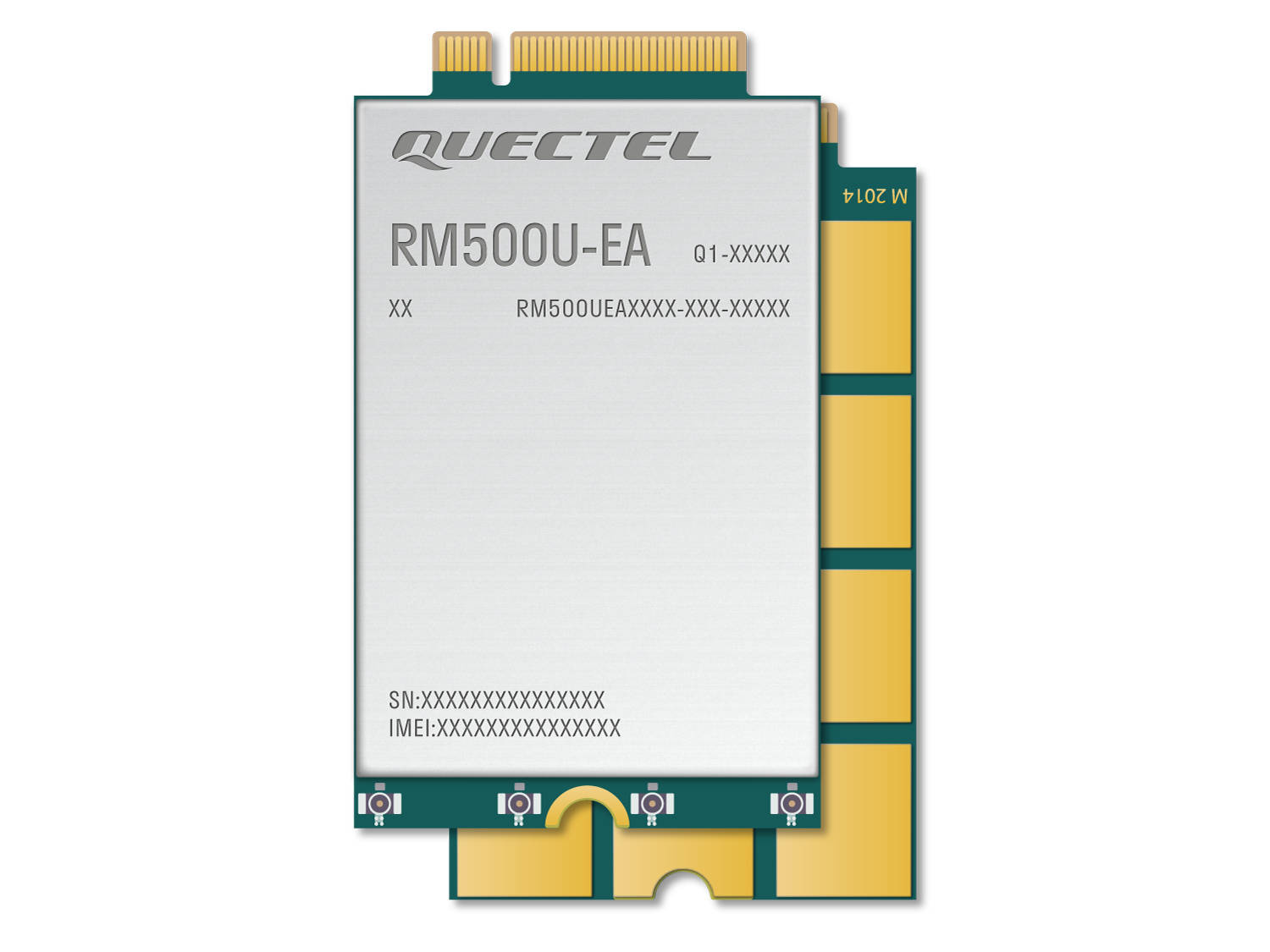

Quectel RM500U-EA - 5G module
Form factorM.2
Max. data transfer1,0 Gbps (UL) SA2,6 Gbps (DL) NSA
Technology5G - Sub-6 GHzLTE-AUMTS
Product width in millimeters30
Product length in millimeters52
RegionEMEAAPACLatin AmericaDetails
Parametry
Find similar products
Brand
Symbol
RM500UEAAA-D10-SNADA
Producer code
5900000815923
Series
Form factor
M.2
Max. data transfer
1,0 Gbps (UL) SA
2,6 Gbps (DL) NSA
Technology
5G - Sub-6 GHz
LTE-A
UMTS
Temperature range
-30...+75°C
Fallback
4G
3G
Product height in millimetres
3.6
Product width in millimeters
30
Product length in millimeters
52
Voltage
3,3 - 4,3V
Region
EMEA
APAC
Latin America
Quectel RM500U-EA
A 5G module by Quectel, with LGA form factor, supporting max data rate: 2.0 Gbps (DL), 1.0 Gbps (UL) in SA mode and 2.6 Gbps (DL), 650 Mbps (UL) in NSA mode. Fallback in 4G and 3G.
-
Supports frequency bands:
- 5G NR NSA: n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78
- 5G NR SA: n1/ 3/ 5/7/ 8/ 20/ 28/ 38/ 40/ 41/66//77/ 78
- LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 66
- LTE-TDD: B38/ 40/ 41
- WCDMA: B1/ 2/ 5/ 8
The product can operate in temperature range of -30... +75°C, and it's power supply is 3.3 - 4.3V, typ. 3.8V.
