Quectel RG530F-EU - 5G module
Form factorLGA
Max. data transfer8,9 Gbps (DL)3,4 Gbps (UL)
Technology5G - Sub-6 GHz5G - mmWaveGNSSLTE-AUMTS
Product width in millimeters45
Product length in millimeters48Log in
Details
Parametry
Find similar products
Brand
Symbol
RG530FEUDA-M28-SGASA
Producer code
5900000815930
Form factor
LGA
Max. data transfer
8,9 Gbps (DL)
3,4 Gbps (UL)
Technology
5G - Sub-6 GHz
5G - mmWave
GNSS
LTE-A
UMTS
Fallback
4G
3G
Temperature range
-30...+75°C
Product height in millimetres
2.75
Product width in millimeters
45
Product length in millimeters
48
Voltage
3,3 - 4,3V
Region
EMEA
Oceania
Brazil

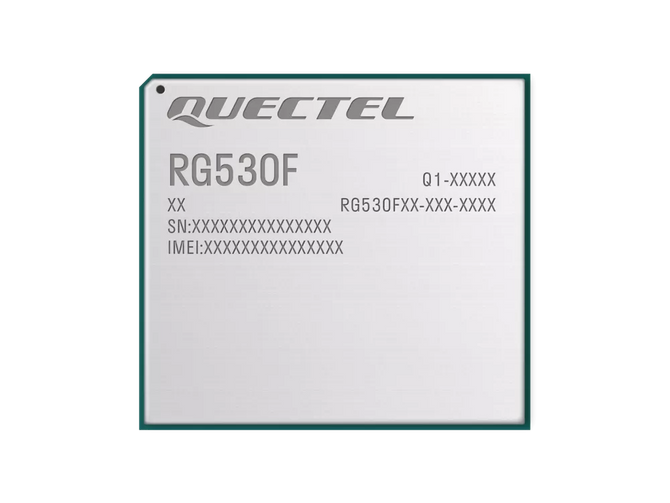

Quectel RG530F-EU
A 5G module by Quectel, with LGA form factor, supporting max data rate: 8.9Gbps (DL), 3.4Gbps (UL). The module is also supporting GNSS navigation (GPS/ GLONASS/ BDS/ Galileo/ QZSS). Fallback in 4G and 3G.
-
Supports frequency bands:
- 5G NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78/ 257/ 258/ 260/ 261
- 5G SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78
- DL 4 × 4 MIMO: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78
- LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32
- LTE-TDD: B38/ 40/ 41/ 42/ 43
- WCDMA: B1/ 5/ 8
The product can operate in temperature range of -30... +75°C, and it's power supply is 3.3 - 4.3V, typ. 3.8V.
