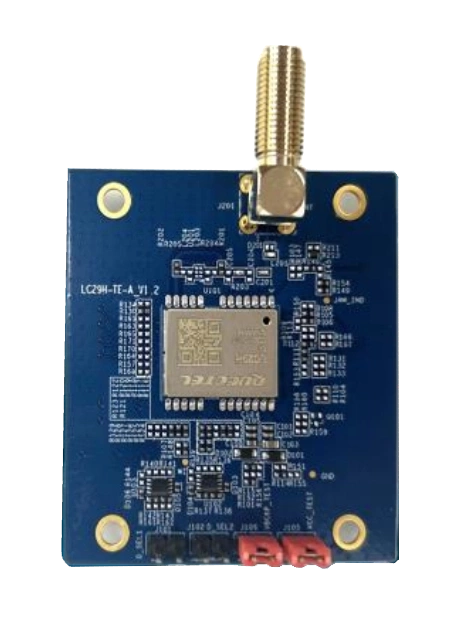

Quectel LC29H-TE-A - LC29H-DA

GNSS evaluation kit with LC29H-DA module and base board, created by Quectel. Requires the GNSS-DHAA EVB Kit evaluation board.

LC29H-DA is a compact GNSS module by Quectel, with LCC form factor, supporting GPS/GLONASS/Galileo/Beidou/QZSS constellations, with a sensitivity of -165 dBm (tracking), -145 dBm (aquisition), and max update rate of 1Hz.

Supported frequency bands:

• GPS: L1 C/A, L5
• Galileo: E1, E5a
• GLONASS: L1
• BDS: B1I B2a
• QZSS: L1 C/A, L5
