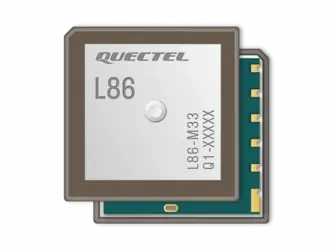

Quectel L86 - GNSS module

Quectel L86 - GNSS module

Form factorLCC
Product width in millimeters18.4
Product length in millimeters18.4
Max update rate10 Hz
ConstellationsGPSGLONASSGalileoQZSS
Size
uniwersalny
excl. VAT
30,17 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Quectel L86 - GNSS module
Quectel L86 - GNSS module
uniwersalny
Safe shopping
Compare
Product Data Sheet - L86
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
L86-M33
Producer code
5900000607757
Form factorForm factor
LCC
TechnologyTechnology
GNSS
Temperature rangeTemperature range
-40...+85°C
Product height in millimetresProduct height in millimetres
6.45
Product width in millimetersProduct width in millimeters
18.4
Product length in millimetersProduct length in millimeters
18.4
Tracking sensitivity
-167 dBm
Aquisition sensitivity
-149 dBm
Special functions
Anti-jamming
Jamming detection
Geo-fence
Built-in LNA
Embedded antena
Max update rateMax update rate
10 Hz
ConstellationsConstellations
GPS
GLONASS
Galileo
QZSS
VoltageVoltage
2,8 - 4,3V
Search

Quectel L86 - GNSS module

A GNSS module by Quectel, with LCC form factor, supporting GPS/GLONASS/Galileo/QZSS constellations, with a sensitivity of -167 dBm (tracking), -149 dBm (aquisition), and max update rate of 10Hz.

Supported frequency bands:

  • GPS: L1
  • Galileo: E1
  • GLONASS: L1
  • QZSS: L1

The product can operate in temperature range of -40°C... +85°C, and it's power supply is 3.0 - 4.3V.
