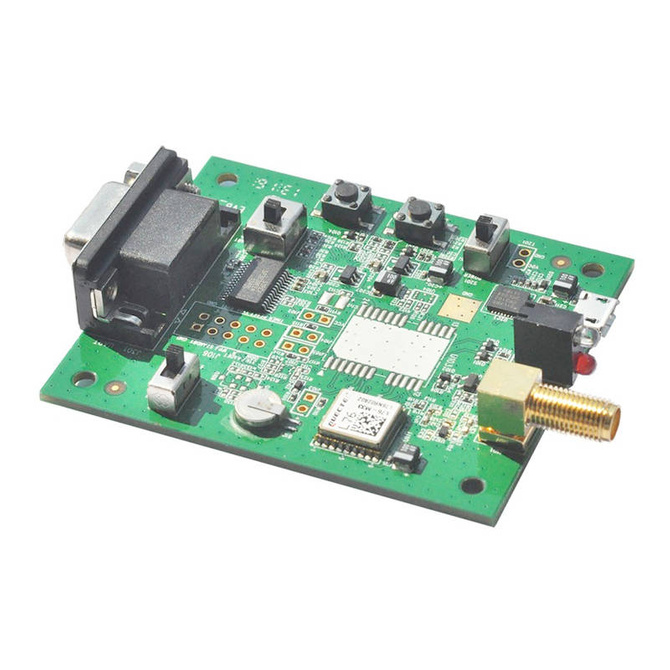

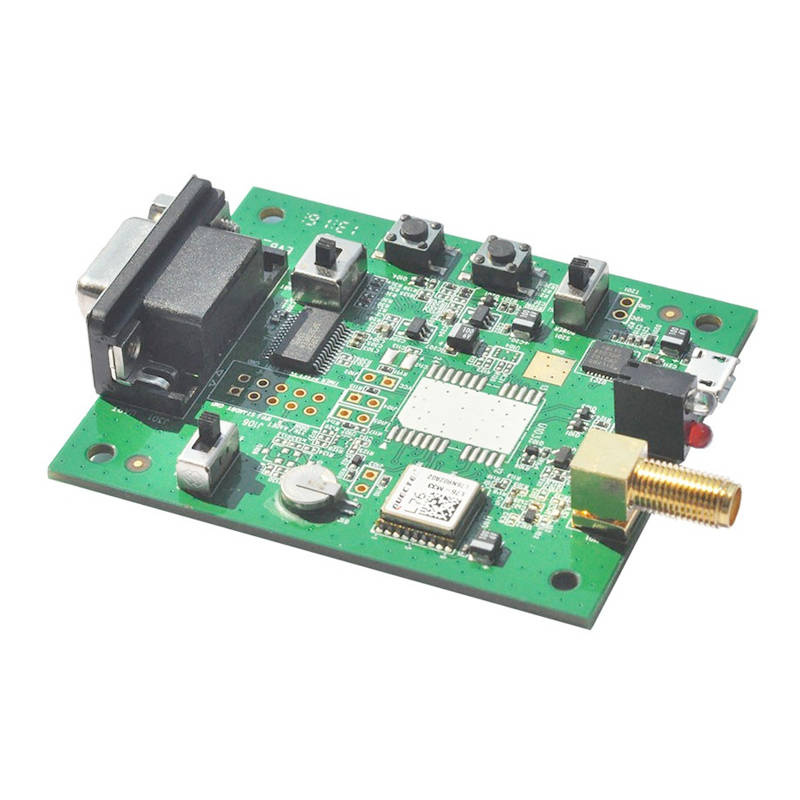

Quectel L76-LL EVB KIT

GNSS evaluation kit with L76-LL module and base board, created by Quectel.

L76-LL is a compact GNSS module by Quectel, with LCC form factor, supporting GPS/GLONASS/Galileo/Beidou/QZSS constellations, with a sensitivity of -165 dBm (tracking), -148 dBm (aquisition), and max update rate of 10Hz.

Supported frequency bands:

• GPS: GPS L1 C/A: 1575.42 MHz
• GLONASS L1: 1602.5625 MHz
• BDS B1I : 1561.098 MHz
• Galileo E1: 1575.42 MHz
• QZSS: L1 C/A: 1575.42 MHz
