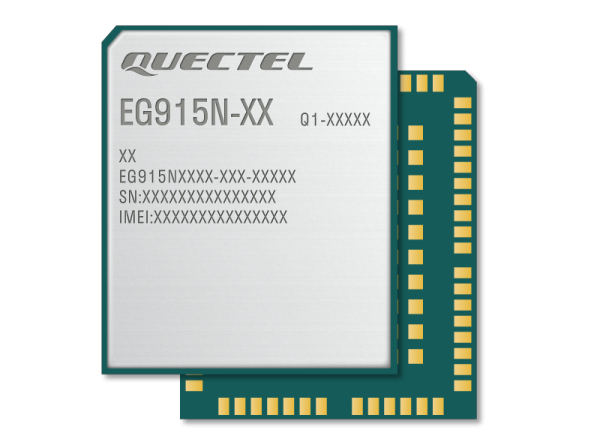

Quectel EG915N-EA - LTE+GNSS module

Quectel EG915N-EA - LTE+GNSS module

Form factorLGA
CategoryCat 1
Max. data transfer10 Mbps (DL)5 Mbps (UL)
TechnologyLTEGNSSGSM
Product width in millimeters19.9
Product length in millimeters23.6
excl. VAT
10,63 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
EG915NEAAG-N05-SGNSA
Form factorForm factor
LGA
CategoryCategory
Cat 1
Max. data transferMax. data transfer
10 Mbps (DL)
5 Mbps (UL)
TechnologyTechnology
LTE
GNSS
GSM
FallbackFallback
2G
Temperature rangeTemperature range
-35...+75°C
Product height in millimetresProduct height in millimetres
2.4
Product width in millimetersProduct width in millimeters
19.9
Product length in millimetersProduct length in millimeters
23.6
VoltageVoltage
3,4 - 4,5V
RegionRegion
Europe
South Korea
Search

Quectel EG915N-EA

A 4G module by Quectel, with LGA form factor, supporting LTE standards of communication with fallback in 2G and GNSS navigation support (GPS/ GLONASS/ Galileo/ BDS/ SBAS/ QZSS). Max data rate: 10Mbps (DL), 5Mbps (UL).

    Supports frequency bands:
  • LTE-FDD: B1/ 3/ 7/ 8/ 20/ 28
  • GSM: B3/8

The product can operate in temperature range of -35... +75°C, and it's power supply is 3.4 - 4.5V, typ. 3.8V.
