Quectel EG25-G 2+2 - LTE module
Form factorLGA
CategoryCat 4
Max. data transfer150 Mbps (DL)50 Mbps (UL)
Memory2Gbit ROM+2Gbit RAM
Product width in millimeters29
Product length in millimeters42
RegionGlobalDetails
Parametry
Find similar products
Brand
Symbol
EG25GGB-256-SGNS
Producer code
5900000811239
Series
Form factor
LGA
Category
Cat 4
Max. data transfer
150 Mbps (DL)
50 Mbps (UL)
Technology
LTE
UMTS
GSM
GNSS
Fallback
3G
2G
Memory
2Gbit ROM+2Gbit RAM
Temperature range
-35...+75°C
Product height in millimetres
2.4
Product width in millimeters
29
Product length in millimeters
42
Voltage
3,3 - 4,3V
Region
Global

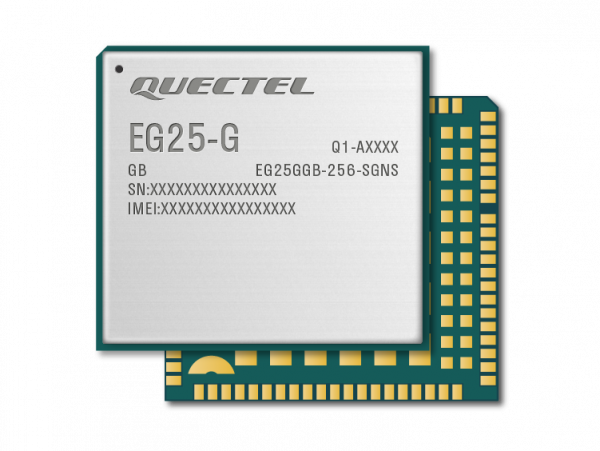

Quectel EG25-G
A 4G module by Quectel, with LGA form factor, supporting LTE standards of communication with fallback in 3G and 2G. Max data rate: 150Mbps (DL), 50Mbps (UL). 2Gbit ROM + 2Gbit RAM memory. The module also supports GNSS navigation (GPS, GLONASS, BDS, Galileo and QZSS).
-
Supports frequency bands:
- LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28
- LTE-TDD: B38/39/40/41
- WCDMA: B1/2/4/5/6/8/19
- GSM: B2/3/5/8
The product can operate in temperature range of -35... +75°C, and it's power supply is 3.3 - 4.3V, typ. 3.8V.
