Quectel EG12-EA-TE-A

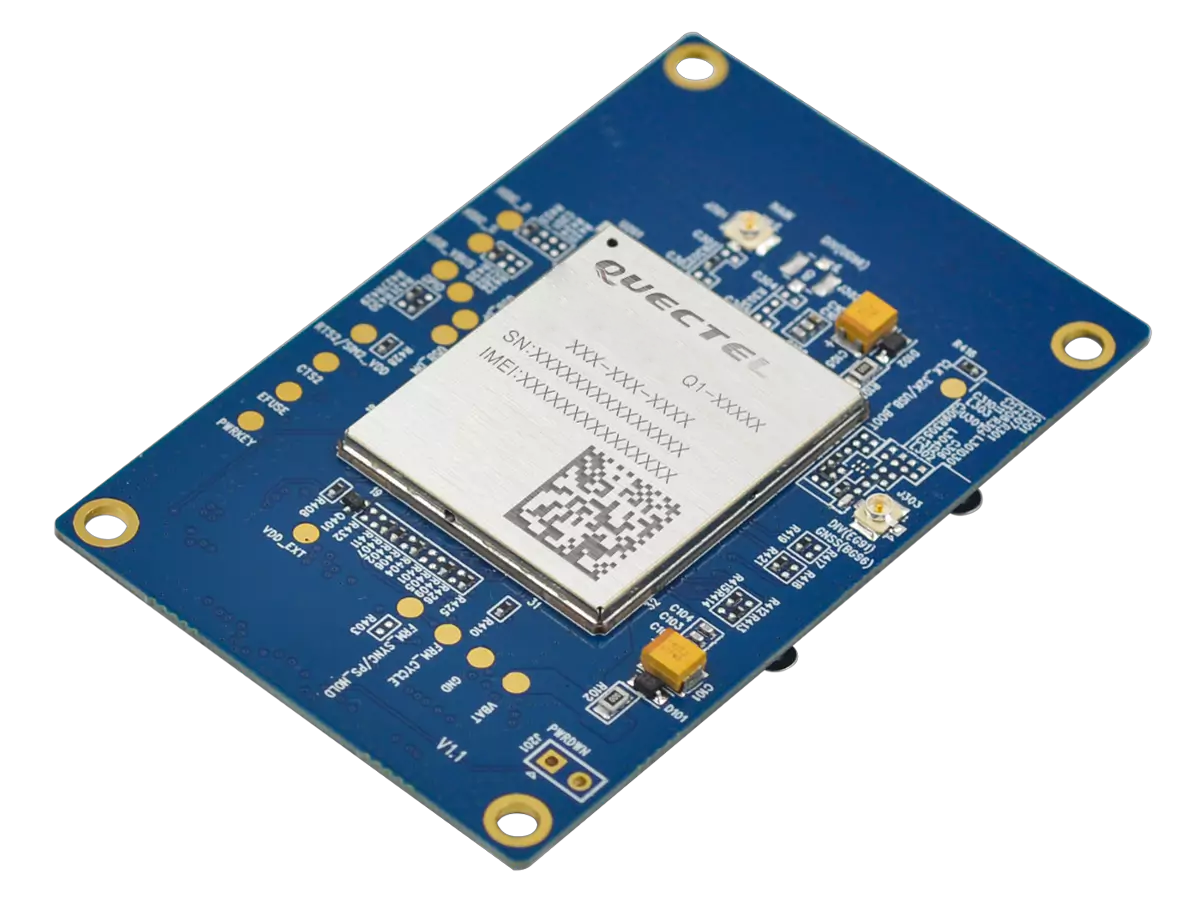

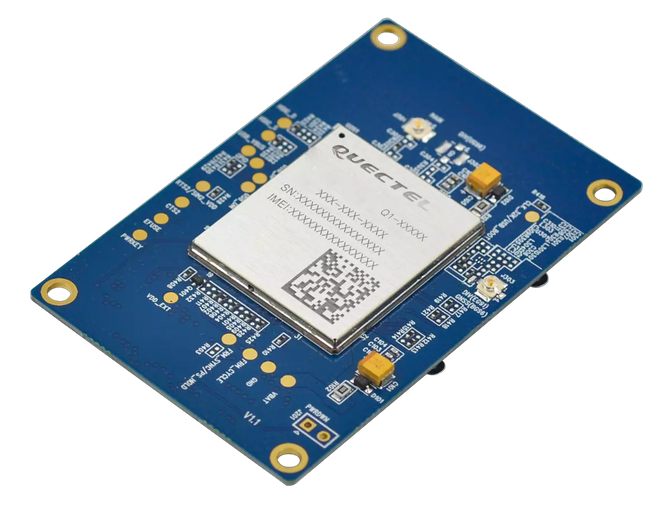

4G evaluation kit, with EG12-EA module on an adapter board, created by Quectel.

EG12-EA is a 4G module by Quectel, with LGA form factor, supporting LTE-A standards of communication with fallback in 3G. Max data rate: 600Mbps (DL), 150Mbps (UL). The module also supports GNSS navigation (GPS, GLONASS, BeiDou, Galileo and QZSS).

Supports frequency bands:
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28
• LTE-TDD: B38/B40/B41

2×CA (UL):
• B3+B3; B7+B7; B38+B38; B40+B40; B41+B41
• UL 64 QAM

2×CA (DL):
• B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41;
• B3+B3/B5/B7/B8/B20/B28/B38/B40/B41;
• B7+B5/B7/B8/B20/B28;
• B20+B38/B40;
• B38+B38;
• B40+B40;
• B41+B41

3×CA (DL):
• B1+B3+B3/B5/B7/B8/B20/B28/B38/B41;
• B1+B40+B40;
• B1+B41+B41;
• B1+B7+B20;
• B3+B3+B7/B20/B28;
• B3+B7+B7/B8/B20/B28;
• B3+B40+B40;
• B3+B41+B41;
• B7+B7+B20/B28;
• B40+B40+B40;
• B41+B41+B41

DL 4×4 MIMO:
• LTE-FDD: B1/B3/B7
• DL 256 QAM

WCDMA:
• B1/B3/B5/B8
