Powertip PH800480T007-IHC - CTP display
Powertip PH800480T007-IHC - CTP display
Powertip PH800480T007-IHC - CTP display
Powertip PH800480T007-IHC - CTP display

Powertip PH800480T007-IHC - CTP display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP-GG
Luminance in cd/m2500
Controller (IC)HX8262-A + HX8678-A
Video interfaceRGB 24-bit
excl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
PH800480T007-IHC
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WVGA
Resolution (px)Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
500
Controller (IC)Controller (IC)
HX8262-A + HX8678-A
Video interfaceVideo interface
RGB 24-bit
Viewing angles
35/35/45/45
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Lens thickness
0,55 mm
Touch panel interface
I2C
Touch panel controller (IC)Touch panel controller (IC)
Hycon HY4635
Search

Powertip PH800480T007-IHC

A 7" TFT display with a capacitive touch panel, created by Powertip. The display has 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 500. Operating temperature range -20...+70°C.

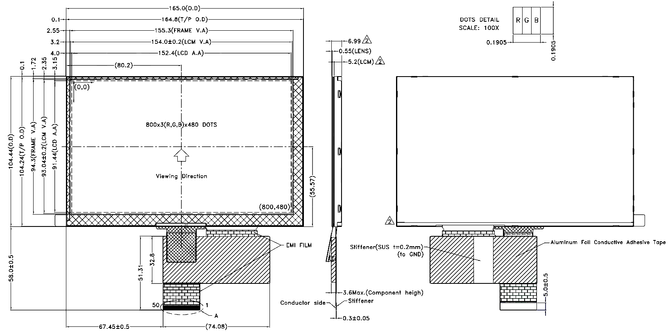

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
