Powertip PH800128T005-ZHA - full viewing angle display

Powertip PH800128T005-ZHA - full viewing angle display

MatrixTFT
Screen diagonal (inch)8
Graphics display resolution standardWXGA
Resolution (px)800 x 1280
Touch panel typeNone
Luminance in cd/m2900
Controller (IC)None
Video interfaceMIPI 4-Lane
excl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
PH800128T005-ZHA
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
8
Graphics display resolution standardGraphics display resolution standard
WXGA
Resolution (px)Resolution (px)
800 x 1280
Aspect ratio
16:10
Touch panel typeTouch panel type
None
Luminance in cd/m2Luminance in cd/m2
900
Controller (IC)Controller (IC)
None
Video interfaceVideo interface
MIPI 4-Lane
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature rangeTemperature range
-20...+65°C
VoltageVoltage
3.3V
Lens thickness
No data
Search

Powertip PH800128T005-ZHA

PH800128T005-ZHA, 8” TFT with full viewing angle display. Brightness: 900. 800 x 1280 resolution with WXGA standard, 16:10 aspect ratio, 4 lans MIPI interface.

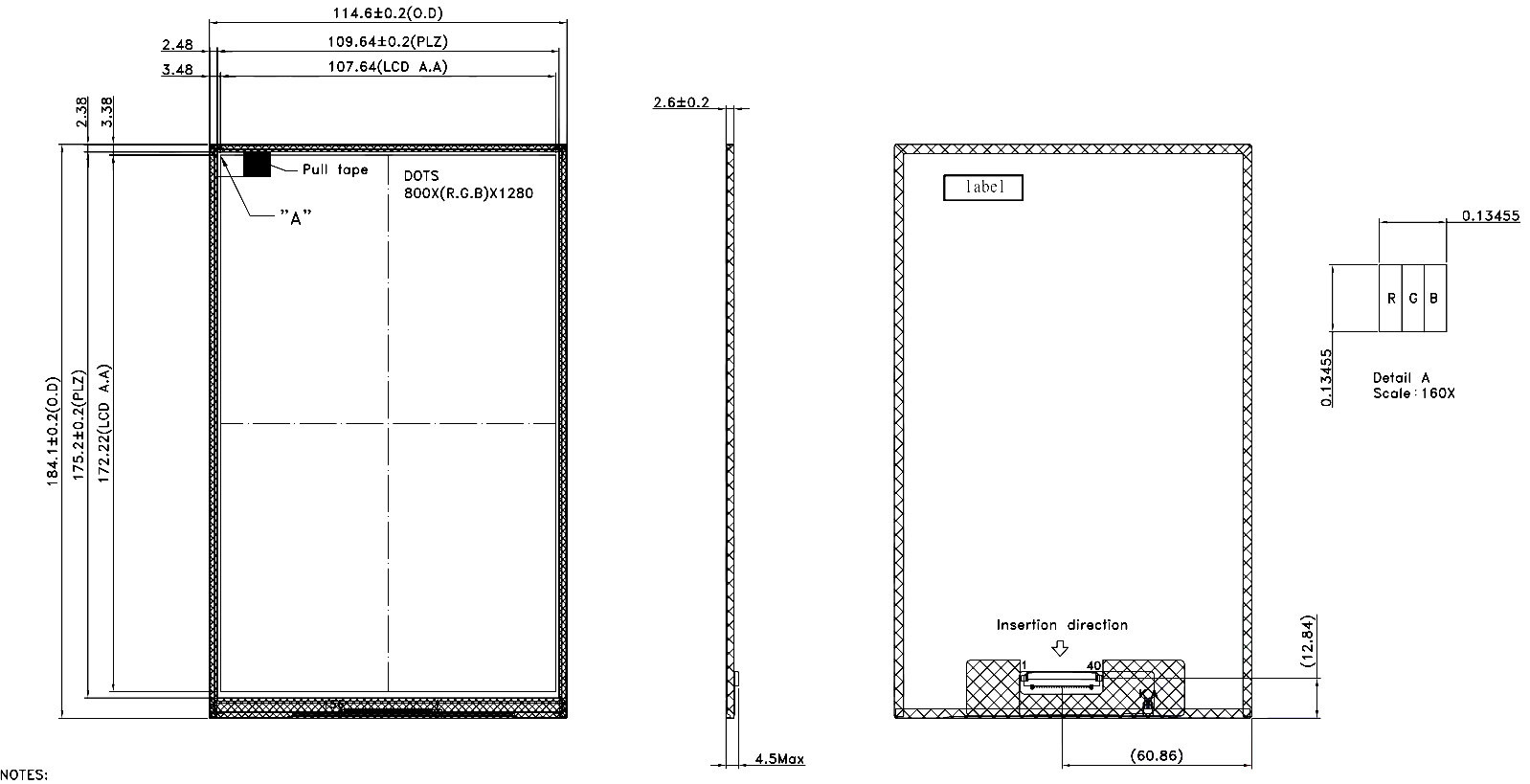

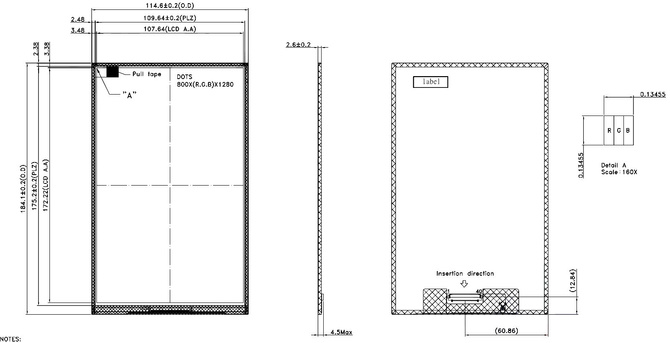

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.

pixel
