Powertip PH720128T005ZBC - CTP display
Powertip PH720128T005ZBC - CTP display
Powertip PH720128T005ZBC - CTP display
Powertip PH720128T005ZBC - CTP display

Powertip PH720128T005ZBC - CTP display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardHD
Resolution (px)720 x 1280
Touch panel typeCTP-GG
Luminance in cd/m2500
Controller (IC)Ilitek ILI9881C
Video interfaceMIPI
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH720128T005ZBC
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH720128T005ZBC
Producer code
5900000774862
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
HD
Resolution (px)Resolution (px)
720 x 1280
Aspect ratio
16:9
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
500
Controller (IC)Controller (IC)
Ilitek ILI9881C
Video interfaceVideo interface
MIPI
Viewing angles
80/80/80/80
Viewing direction
Full
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Goodix GT911
Touch panel interface
I2C
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH720128T005ZBC

A 7" TFT display with a capacitive touch panel, created by Powertip. The display has 720 x 1280 HD resolution and a 24 bit RGB interface. Brightness: 500. Operating temperature range -20...+70°C.

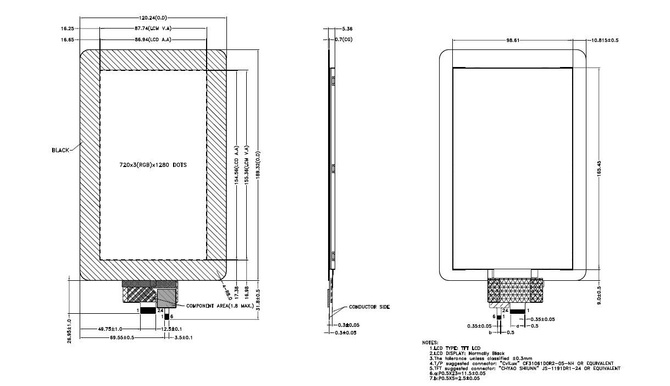

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
