Powertip PH720128T005-ZBA - TFT display
Powertip PH720128T005-ZBA - TFT display
Powertip PH720128T005-ZBA - TFT display
Powertip PH720128T005-ZBA - TFT display

Powertip PH720128T005-ZBA - TFT display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWXGA
Resolution (px)720 x 1280
Touch panel typeNone
Luminance in cd/m2600
Controller (IC)Ilitek ILI9881C
Video interfaceMIPI 2-Lane
Size
uniwersalny
excl. VAT
38,63 €
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Powertip PH720128T005-ZBA - TFT display
Powertip PH720128T005-ZBA - TFT display
uniwersalny
Safe shopping
Compare

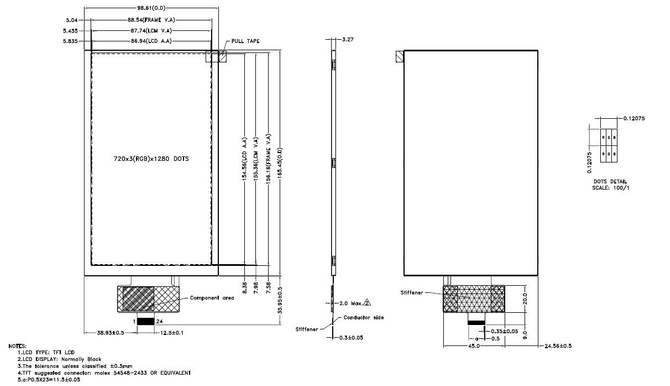

Product Data Sheet - PH720128T005-ZBA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH720128T005-ZBA
Producer code
5900000797571
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WXGA
Resolution (px)Resolution (px)
720 x 1280
Aspect ratio
16:9
Touch panel typeTouch panel type
None
Luminance in cd/m2Luminance in cd/m2
600
Controller (IC)Controller (IC)
Ilitek ILI9881C
Video interfaceVideo interface
MIPI 2-Lane
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH720128T005-ZBA

A 7" TFT display created by Powertip with 720 x 1280 WXGA resolution and a MIPI interface. Brightness: 600. Operating temperature range -20...+70°C.
