Powertip PH720128T004-ZBC11 - CTP display
MatrixTFT
Screen diagonal (inch)5
Graphics display resolution standardHD
Resolution (px)720 x 1280
Touch panel typeCTP-GG
Luminance in cd/m2850
Controller (IC)Ilitek ILI9881C
Video interfaceMIPI 2-LaneLog in
Details
Parametry
Find similar products
Brand
Symbol
PH720128T004-ZBC11
Producer code
5900000758664
Matrix
TFT
Screen diagonal (inch)
5
Graphics display resolution standard
HD
Resolution (px)
720 x 1280
Aspect ratio
16:9
Touch panel type
CTP-GG
Luminance in cd/m2
850
Controller (IC)
Ilitek ILI9881C
Video interface
MIPI 2-Lane
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
0,7 mm
Touch panel interface
I2C
Touch panel controller (IC)
Goodix GT911
Powertip PH720128T004-ZBC11
A 5" TFT display with a capacitive touch panel, created by Powertip. The display has 720 x 1280 HD resolution and a MIPI interface. Brightness: 500. Operating temperature range -20...+70°C.

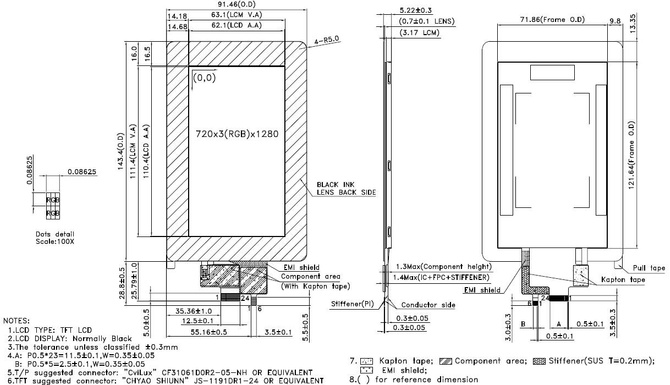

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
