Powertip PH480272T017-ZBC01, 4.3” - full-view display
MatrixTFT
Screen diagonal (inch)4.3
Resolution (px)480 x 272
Graphics display resolution standardWQVGA
Luminance in cd/m2320
Controller (IC)ST7282A-G6-E8A
Touch panel typeCTP
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH480272T017-ZBC01
Matrix
TFT
Screen diagonal (inch)
4.3
Resolution (px)
480 x 272
Graphics display resolution standard
WQVGA
Luminance in cd/m2
320
Aspect ratio
1.76
Controller (IC)
ST7282A-G6-E8A
Touch panel type
CTP
Video interface
24-bit RGB
Viewing angles
80/80/80/80
Voltage
4.6V
Temperature range
-20...+70°C
Lens thickness
2.9 mm
Powertip PH480272T017-ZBC01, 4.3”
TFT full-view 4.3" display with 24-bit RGB interface. Brightness: 320, ST7282A-G6-E8A controller. Operating temperature range -20...+70°C.

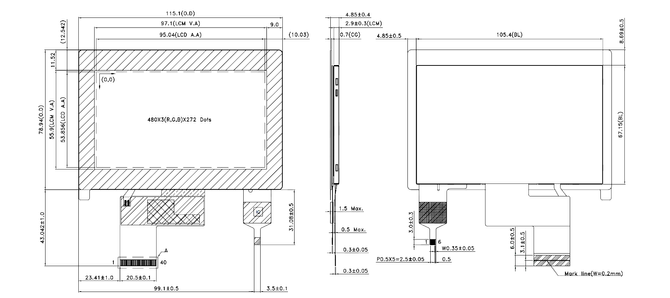

The photograph is for illustrative purposes only. To see the final product, check the drawing in the gallery or download the documentation.
