Powertip PH480272T009-IBC03 - CTP display
MatrixTFT
Screen diagonal (inch)4.3
Graphics display resolution standardWQVGA
Resolution (px)480 x 272
Touch panel typeCTP-OGS
Luminance in cd/m2460
Controller (IC)Ilitek ILI6480B
Video interfaceRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH480272T009-IBC03
Producer code
5900000824321
Matrix
TFT
Screen diagonal (inch)
4.3
Graphics display resolution standard
WQVGA
Resolution (px)
480 x 272
Aspect ratio
16:9
Touch panel type
CTP-OGS
Luminance in cd/m2
460
Controller (IC)
Ilitek ILI6480B
Video interface
RGB 24-bit
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
0,8 mm
Touch panel controller (IC)
Sitronix ST1633i
Touch panel interface
I2C
Powertip PH480272T009-IBC03
A 4.3" TFT display with a capacitive touch panel, created by Powertip. The display has 480 x 272 WQVGA resolution and 24-bit RGB interface. Brightness: 460. Operating temperature range -20...+70°C.

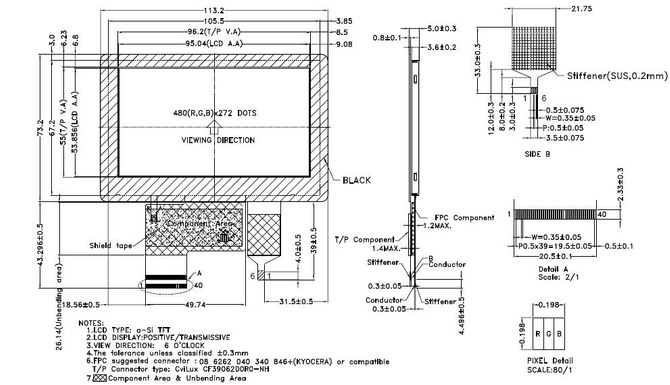

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
This product is NOT RECOMMENDED for new designs.
