Powertip PH480272T005-IAC02 - CTP display
MatrixTFT
Screen diagonal (inch)4.3
Graphics display resolution standardWQVGA
Resolution (px)480 x 272
Touch panel typeCTP-GG
Luminance in cd/m2280
Controller (IC)Sitronix ST7257
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH480272T005-IAC02
Producer code
5900000824314
Matrix
TFT
Screen diagonal (inch)
4.3
Graphics display resolution standard
WQVGA
Resolution (px)
480 x 272
Aspect ratio
16:9
Touch panel type
CTP-GG
Luminance in cd/m2
280
Controller (IC)
Sitronix ST7257
Video interface
24-bit RGB
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
2,8V
Lens thickness
0,7 mm
Touch panel controller (IC)
Hycon HY4635
Touch panel interface
I2C
Powertip PH480272T005-IAC02
A 4.3" TFT display with a capacitive touch panel, created by Powertip. The display has 480 x 272 WQVGA resolution and 24-bit RGB interface. Brightness: 280. Operating temperature range -20...+70°C.

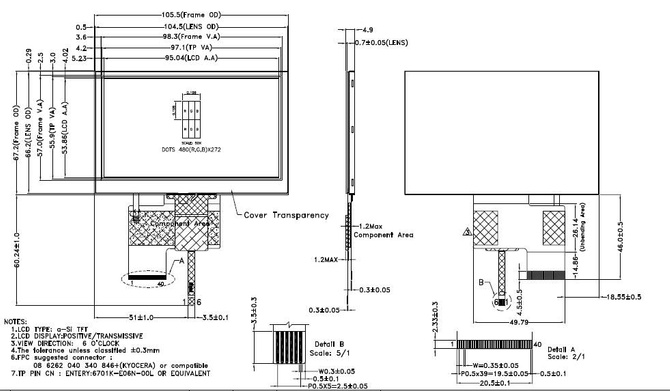

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
