Powertip PH480272T-005-I10Q - TFT display
MatrixTFT
Screen diagonal (inch)4.3
Graphics display resolution standardWQVGA
Resolution (px)480 x 272
Touch panel typeRTP
Luminance in cd/m2340
Controller (IC)SSD1963 + HX8257
Video interface68/80-16 bitDetails
Parametry
Find similar products
Brand
Symbol
PH480272T-005-I10Q
Producer code
5900000823935
Matrix
TFT
Screen diagonal (inch)
4.3
Graphics display resolution standard
WQVGA
Resolution (px)
480 x 272
Aspect ratio
15:9
Touch panel type
RTP
Luminance in cd/m2
340
Controller (IC)
SSD1963 + HX8257
Video interface
68/80-16 bit
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH480272T-005-I10Q
A TFT display created by Powertip with 480 x 272 WQVGA resolution, 4.3", 68/80-16 bit interface and a resistive touch panel. Operating temperature range -20...+70°C.

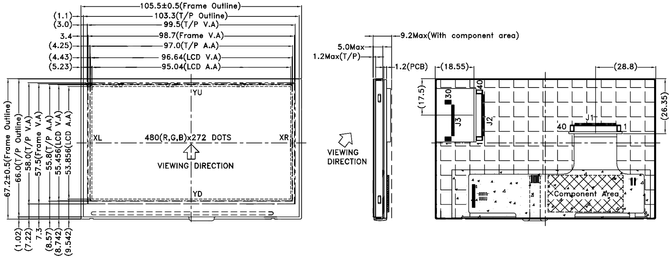

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
