Brand
Symbol
PH480272T-005-I09Q
Producer code
5900000823898
Matrix

TFT
Screen diagonal (inch)

4.3
Graphics display resolution standard

WQVGA
Resolution (px)

480 x 272
Aspect ratio
1.76
Touch panel type

None
Luminance in cd/m2

420
Controller (IC)

SSD1963 + HX8257
Video interface

Parallel 8080 16-bit
Parallel 6800 16-bit
Viewing angles
60/50/60/60
Viewing direction
6H
Temperature range

-20...+70°C
Voltage

3.3V
Powertip PH480272T-005-I09Q
A TFT display created by Powertip with 480 x 272 WQVGA resolution, 4.3" and 68/80-16 bit interface. Operating temperature range -20...+70°C.

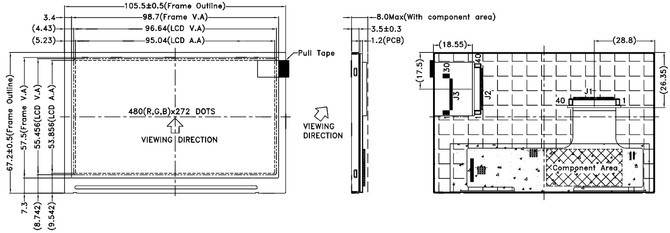

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
