Powertip PH320480T009-LAC03 - CTP display
MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardHVGA
Resolution (px)480 x 320
Touch panel typeCTP-GF
Luminance in cd/m2360
Controller (IC)Sitronix ST7796S
Video interfaceParallel 8080 16-bitParallel 8080 18-bitParallel 8080 9-bitParallel 8080 8-bitRGB 16-bitRGB 18-bitSPILog in
Details
Parametry
Find similar products
Brand
Symbol
PH320480T009-LAC03
Producer code
5900000824291
Matrix
TFT
Screen diagonal (inch)
3.5
Graphics display resolution standard
HVGA
Resolution (px)
480 x 320
Aspect ratio
3:2
Touch panel type
CTP-GF
Luminance in cd/m2
360
Controller (IC)
Sitronix ST7796S
Video interface
Parallel 8080 16-bit
Parallel 8080 18-bit
Parallel 8080 9-bit
Parallel 8080 8-bit
RGB 16-bit
RGB 18-bit
SPI
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
2,8V
Lens thickness
0,3 mm
Touch panel controller (IC)
Sitronix ST1624
Touch panel interface
I2C
Powertip PH320480T009-LAC03
A 3.5" TFT display with a capacitive touch panel, created by Powertip. The display has 320 x 480 HVGA resolution and multiple interfaces. Brightness: 360. Operating temperature range -20...+70°C.

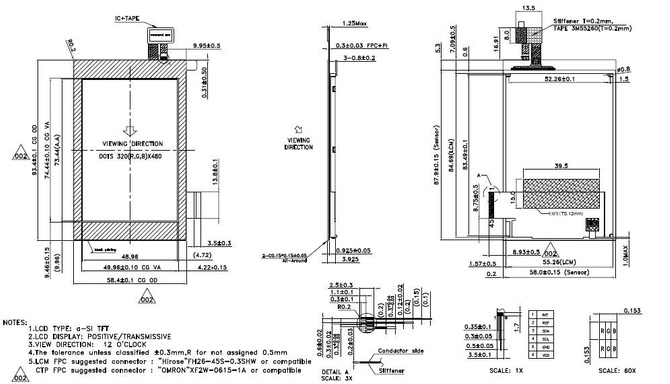

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
This product is NOT RECOMMENDED for new designs. Use PH320480T009-LAC11 instead.
