Powertip PH320480T009-LAC11 - CTP display
MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardLQVGA
Resolution (px)320 x 240
Touch panel typeCTP-GFF
Luminance in cd/m2360
Controller (IC)Sitronix ST7796S
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH320480T009-LAC11
Producer code
5900000824284
Matrix
TFT
Screen diagonal (inch)
3.5
Graphics display resolution standard
LQVGA
Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel type
CTP-GFF
Luminance in cd/m2
360
Controller (IC)
Sitronix ST7796S
Video interface
24-bit RGB
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
2,8V
Lens thickness
0,3 mm
Touch panel interface
I2C
Touch panel controller (IC)
Sitronix ST1624
Powertip PH320480T009-LAC11
A 3.5" TFT display with CTP, created by Powertip. The display has 320 x 240 LQVGA resolution and multiple interfaces. Brightness: 360. Operating temperature range -20...+70°C.

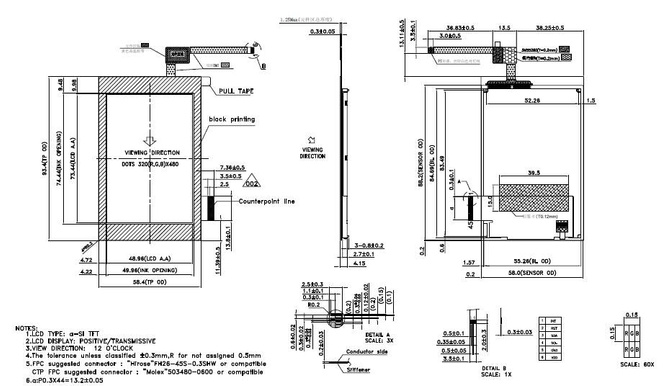

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
