Powertip PH320240T023-IBC08 - CTP display
MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardLQVGA
Resolution (px)320 x 240
Touch panel typeCTP-GFF
Luminance in cd/m2400
Controller (IC)Himax HX8238
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH320240T023-IBC08
Producer code
5900000824239
Matrix
TFT
Screen diagonal (inch)
3.5
Graphics display resolution standard
LQVGA
Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel type
CTP-GFF
Luminance in cd/m2
400
Controller (IC)
Himax HX8238
Video interface
24-bit RGB
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
0,7 mm
Touch panel interface
I2C
Touch panel controller (IC)
Chipone ICNT8952
Powertip PH320240T023-IBC08
A 3.5" TFT display with a capacitive display panel (CTP), created by Powertip. The display has 320 x 240 LQVGA resolution and an 24-bit RGB interface. Lens thickness: 0.7. Brightness: 400. Operating temperature range -20...+70°C.

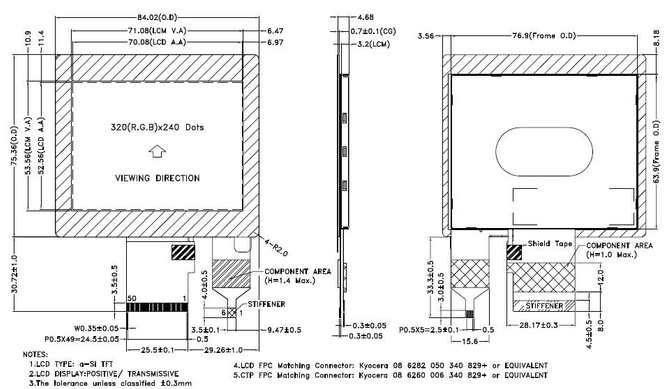

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
