Powertip PH320240T-022-I-Q - TFT display
Powertip PH320240T-022-I-Q - TFT display
Powertip PH320240T-022-I-Q - TFT display
Powertip PH320240T-022-I-Q - TFT display

Powertip PH320240T-022-I-Q - TFT display

MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardLQVGA
Resolution (px)320 x 240
Touch panel typeNone
Luminance in cd/m2250
Controller (IC)Solomon Systech SSD2119
Video interfaceRGB 18-bitParallel 8080 8-bitParallel 8080 9-bitParallel 8080 16-bitParallel 8080 18-bitParallel 6800 8-bitParallel 6800 9-bitParallel 6800 16-bitParallel 6800 18-bitRGB 6-bitSPI
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH320240T-022-I-Q
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH320240T-022-I-Q
Producer code
5900000773889
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
3.5
Graphics display resolution standardGraphics display resolution standard
LQVGA
Resolution (px)Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel typeTouch panel type
None
Luminance in cd/m2Luminance in cd/m2
250
Controller (IC)Controller (IC)
Solomon Systech SSD2119
Video interfaceVideo interface
RGB 18-bit
Parallel 8080 8-bit
Parallel 8080 9-bit
Parallel 8080 16-bit
Parallel 8080 18-bit
Parallel 6800 8-bit
Parallel 6800 9-bit
Parallel 6800 16-bit
Parallel 6800 18-bit
RGB 6-bit
SPI
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH320240T-022-I-Q

A TFT display created by Powertip with 320 x 240 LQVGA resolution, 3,5", supporting multiple interfaces . Operating temperature range -20...+70°C.

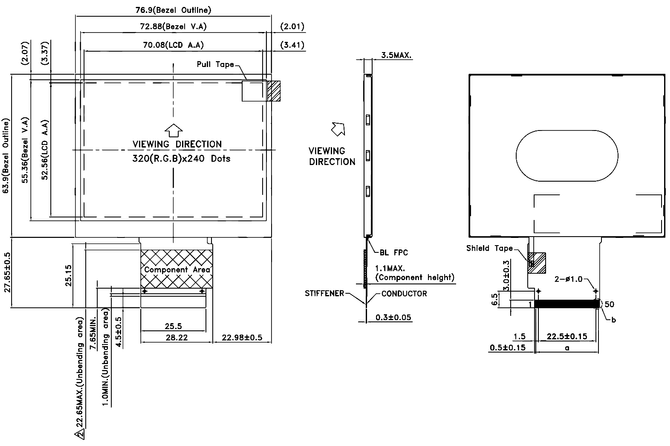

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
