MatrixTFT
Screen diagonal (inch)7
Resolution (px)280 x 1424
Touch panel typeCTP
Luminance in cd/m2400
Controller (IC)Sitronix ST7703I
Video interfaceMIPI 4-Lane
Próbkitak
Details
Parametry
Find similar products
Brand
Symbol
PH280142T001-ZBR
Matrix
TFT
Screen diagonal (inch)
7
Resolution (px)
280 x 1424
Aspect ratio
1:5
Touch panel type
CTP
Luminance in cd/m2
400
Controller (IC)
Sitronix ST7703I
Touch panel controller (IC)
FocalTech FT5426
Video interface
MIPI 4-Lane
Viewing angles
85/85/85/85
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
2,8V

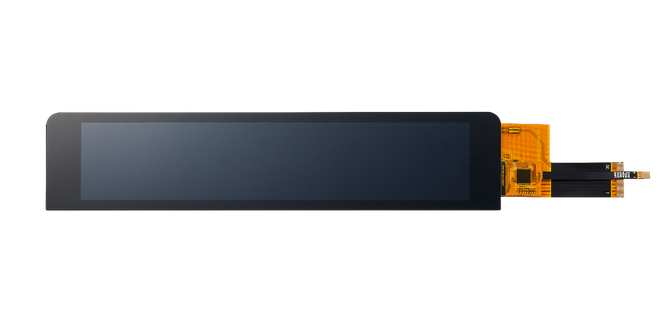

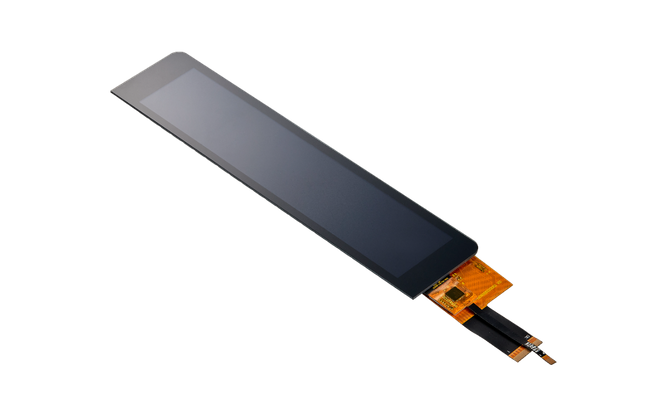

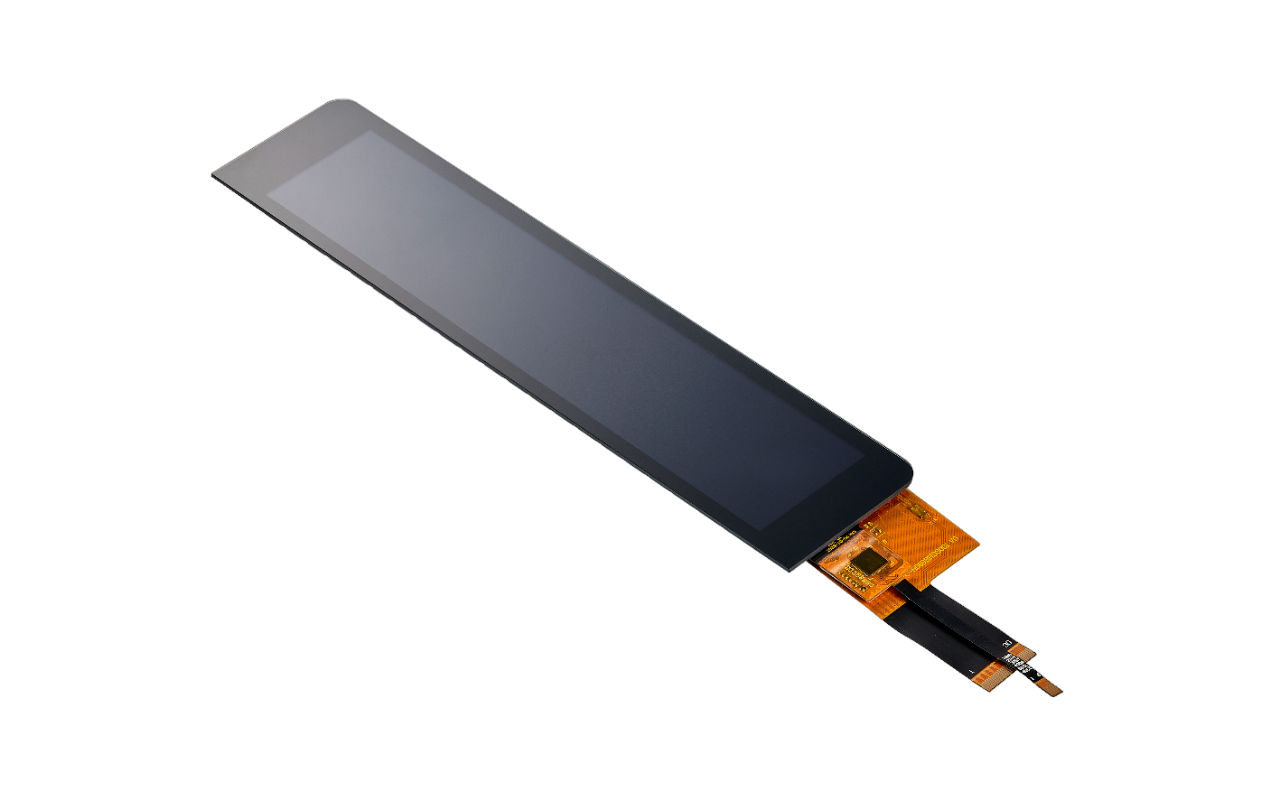

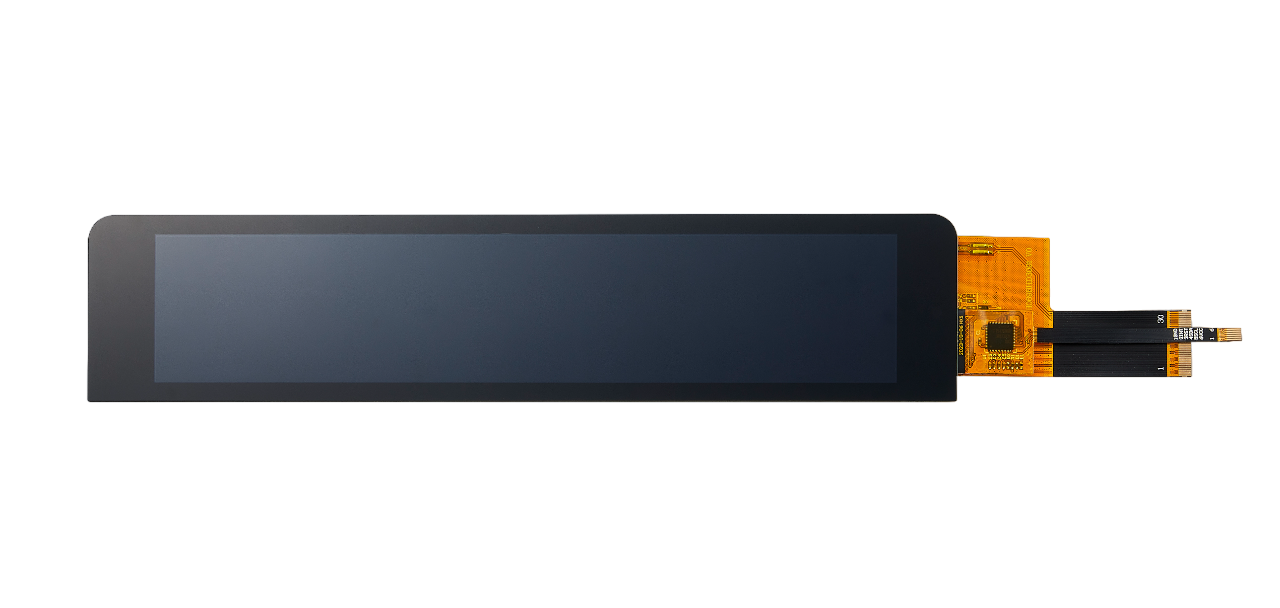

Powertip PH280142T001-ZBR

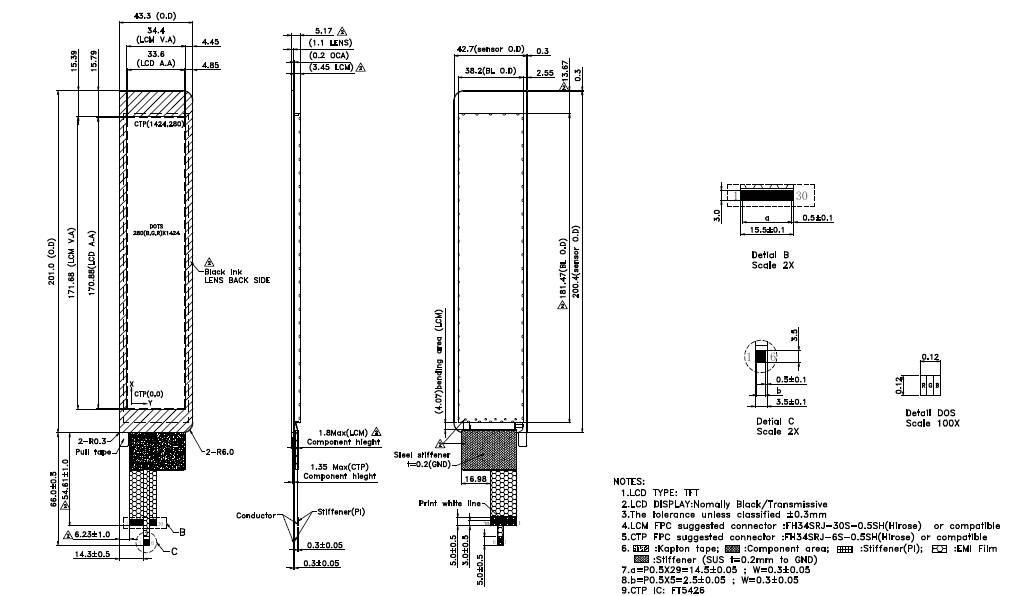

A 7" TFT full viewing angle display with capacitive touch panel, created by Powertip. The display has 280 x 1424 resolution and MIPI 4-Lane interface. Brightness: 400. Size: 201 x 43.3 x 5.17 mm. Operating temperature range -20...+70°C.
