Powertip PH192108T005-ZFC - CTP display
Powertip PH192108T005-ZFC - CTP display
Powertip PH192108T005-ZFC - CTP display
Powertip PH192108T005-ZFC - CTP display

Powertip PH192108T005-ZFC - CTP display

MatrixTFT
Screen diagonal (inch)15.6
Graphics display resolution standardFHD
Resolution (px)1920 x 1080
Touch panel typeCTP-GG
Luminance in cd/m2380
Controller (IC)None
Video interfaceLVDS
Próbkitak
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Order a sample
Compare
Product Data Sheet - PH192108T005-ZFC
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH192108T005-ZFC
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
15.6
Graphics display resolution standardGraphics display resolution standard
FHD
Resolution (px)Resolution (px)
1920 x 1080
Aspect ratio
16:9
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
380
Controller (IC)Controller (IC)
None
Video interfaceVideo interface
LVDS
Viewing direction
Full
Viewing angles
89/89/89/89
Temperature rangeTemperature range
-30...+85°C
VoltageVoltage
3.3V
Lens thickness
2 mm
Search

Powertip PH192108T005-ZFC

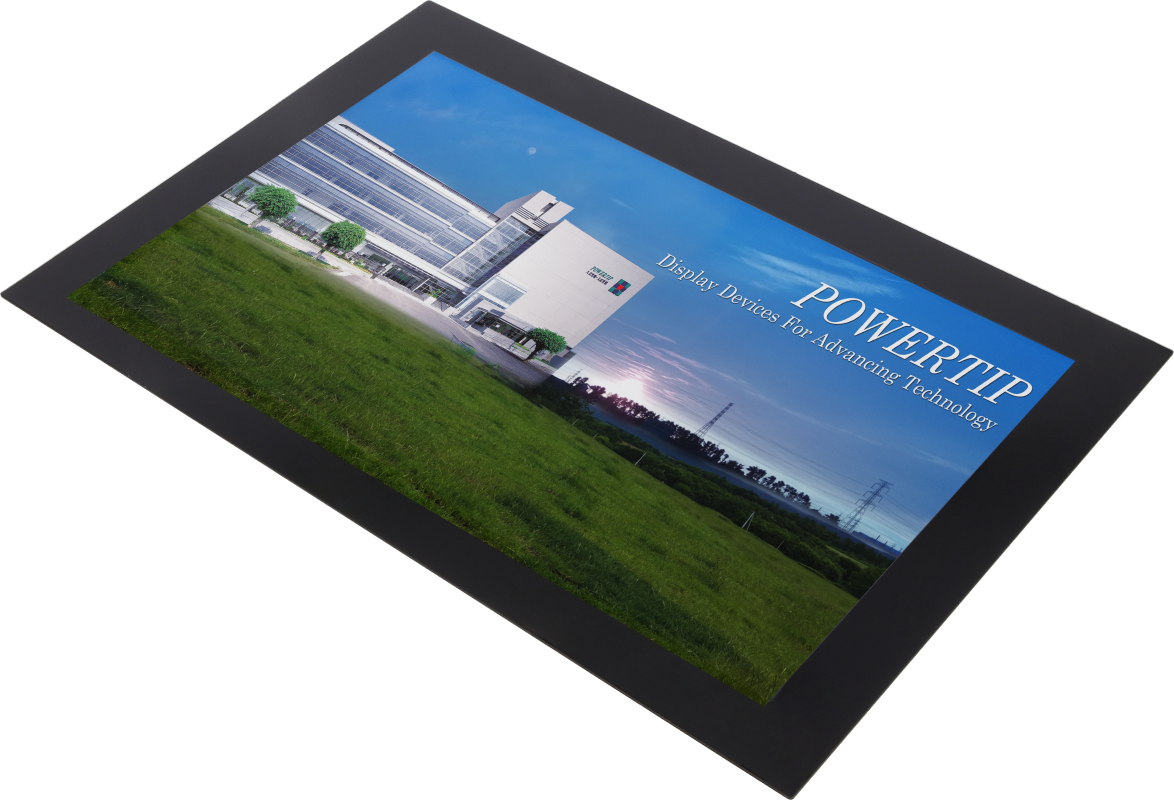

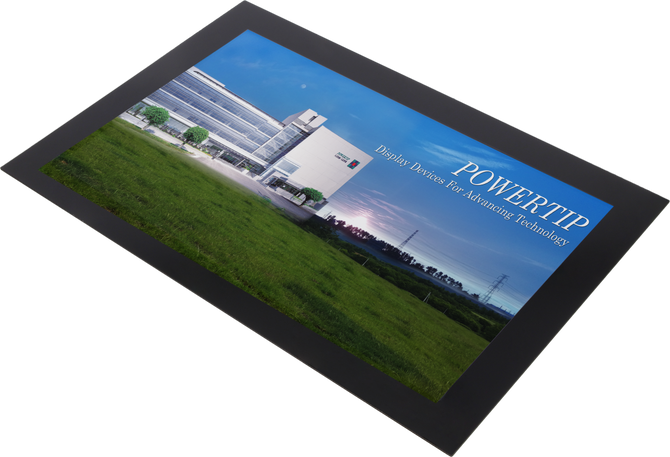

A 15.6" CTP full viewing angle display with capacitive touch display, created by Powertip. The display has 1920 x 1080 FHD resolution and dual-channel LVDS interface. Brightness: 380. Operating temperature range -30...+85°C.

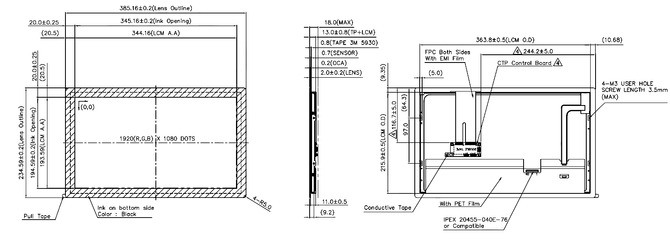

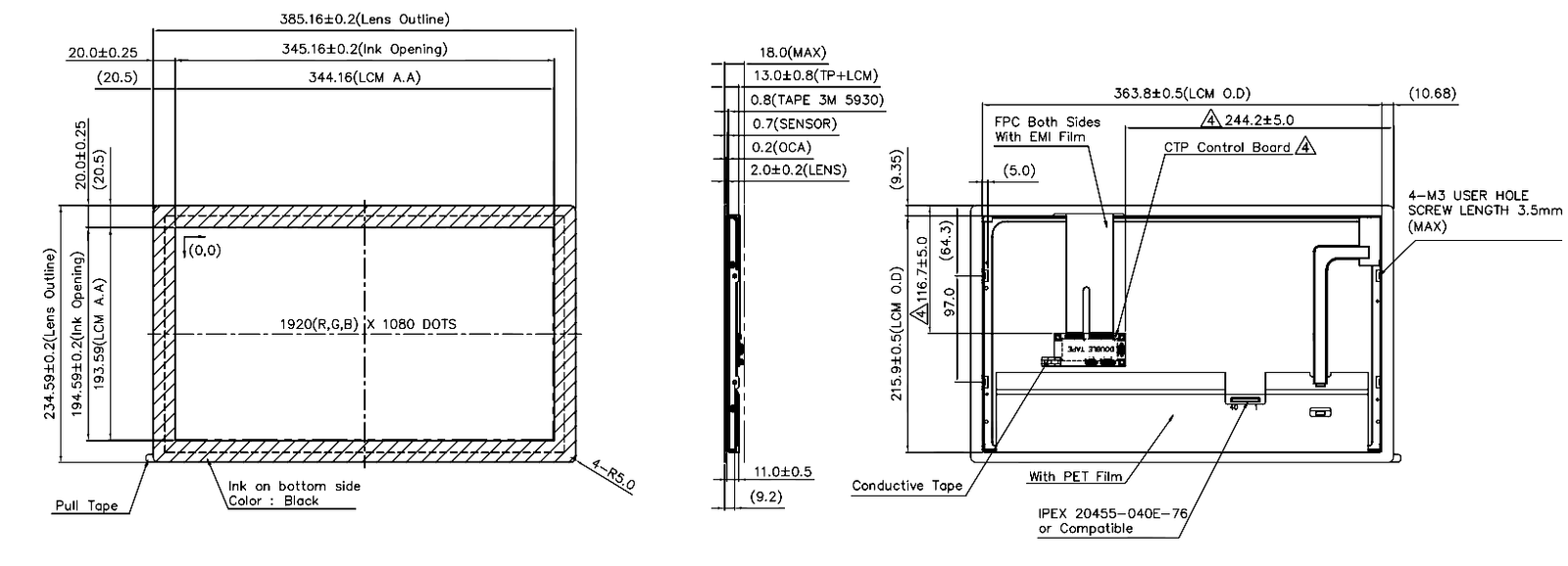

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
