Powertip PH176220T062-LAB05 - TFT display
Details
Parametry
Find similar products
Brand
Symbol
PH176220T062-LAB05
Producer code
5900000823430
Matrix
TFT
Screen diagonal (inch)
2
Graphics display resolution standard
QQVGA
Resolution (px)
176 x 220
Aspect ratio
4:5
Touch panel type
RTP
Luminance in cd/m2
180
Controller (IC)
Sitronix ST7775R
Video interface
SPI-4
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH176220T062-LAB05
A TFT display created by Powertip with 176 x 220 QQVGA resolution, 2", with an SPI-4 interface and a resistive touch panel. Operating temperature range -20...+70°C.

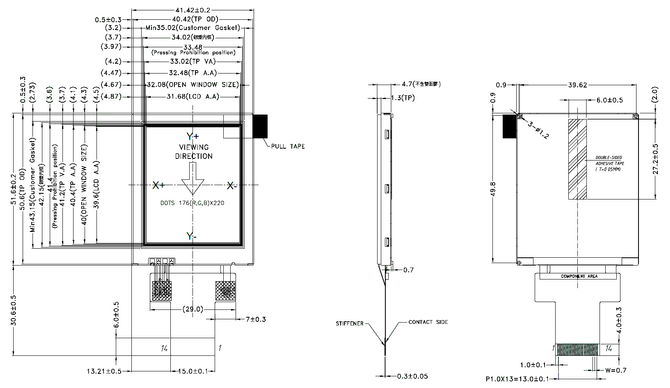

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
