MatrixTFT
Screen diagonal (inch)10.1
Graphics display resolution standardWXGA
Resolution (px)1280 x 800
Touch panel typeCTP
Luminance in cd/m2850
Controller (IC)Ilitek ILI2132
Video interfaceLVDS
Details
Parametry
Find similar products
Brand
Symbol
PH128800T008-ZHR
Matrix
TFT
Screen diagonal (inch)
10.1
Graphics display resolution standard
WXGA
Resolution (px)
1280 x 800
Aspect ratio
16:10
Touch panel type
CTP
Luminance in cd/m2
850
Controller (IC)
Ilitek ILI2132
Video interface
LVDS
Viewing angles
85/85/85/85
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH128800T008-ZHR

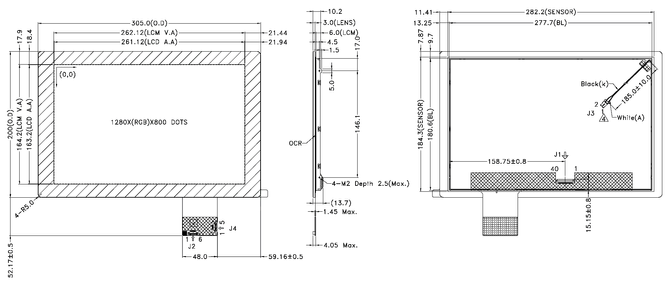

A 10.1" TFT full viewing angle display, created by Powertip. The display has 1280 x 800 WXGA resolution and LVDS interface. Brightness: 8500. Operating temperature range -20...+70°C.
