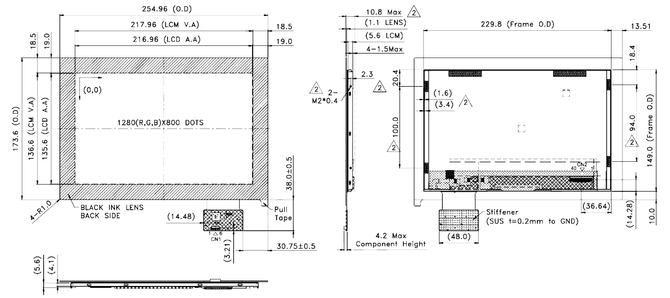

Powertip PH128800T007-ZJC, 10.1" - full-view display
Powertip PH128800T007-ZJC, 10.1" - full-view display
Powertip PH128800T007-ZJC, 10.1" - full-view display
Powertip PH128800T007-ZJC, 10.1" - full-view display

Powertip PH128800T007-ZJC, 10.1" - full-view display

MatrixTFT
Screen diagonal (inch)10.1
Graphics display resolution standardWXGA
Resolution (px)1280 x 800
Touch panel typePCAP
Luminance in cd/m21300
Controller (IC)FT5726
Video interfaceLVDS
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH128800T007-ZJC
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH128800T007-ZJC
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
10.1
Graphics display resolution standardGraphics display resolution standard
WXGA
Resolution (px)Resolution (px)
1280 x 800
Touch panel typeTouch panel type
PCAP
Aspect ratio
16:10
Luminance in cd/m2Luminance in cd/m2
1300
Controller (IC)Controller (IC)
FT5726
Video interfaceVideo interface
LVDS
Viewing angles
80/80/80/80
Temperature rangeTemperature range
-30...+80°C
Touch panel interface
I2C
Lens thickness
1,1 mm
Search

Powertip PH128800T007-ZJC, 10.1"

TFT display with 1280 x 800 WXGA, a high brightness model. Featuring 10.1”, 50K MTBF with 1300 nits, video interface LVDS, controller (IC) FT5726 and extended operating temperature -30..+80°C

Application: outdoor, EV Charger, autonomous device, boat GPS navigator and drone remote control.
