Brand
Symbol
PH128800T007-ZHC
Producer code
5900000815183
Matrix

TFT
Screen diagonal (inch)

10.1
Graphics display resolution standard

WXGA
Resolution (px)

1280 x 800
Aspect ratio
16:10
Touch panel type

PCAP
Luminance in cd/m2

800
Controller (IC)

FT5726
Video interface

LVDS
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range

-30...+80°C
Voltage

3.3V

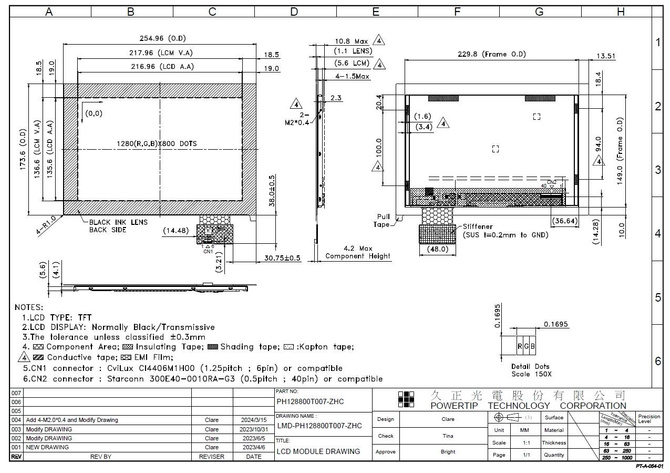

Powertip PH128800T007-ZHC
A 10.1" TFT full viewing angle display with PCAP touch panel, created by Powertip. The innovative PCAP panel is an advancement of the capacitive touch panels, allowing an unlimited number of simultaneous screen touches. The display has 1280 x 800 WXGA resolution and LVDS interface. Brightness: 800. Operating temperature range -30...+80°C.
