Powertip PH128800T004-ZZC06 - CTP display
Powertip PH128800T004-ZZC06 - CTP display
Powertip PH128800T004-ZZC06 - CTP display
Powertip PH128800T004-ZZC06 - CTP display

Powertip PH128800T004-ZZC06 - CTP display

MatrixTFT
Screen diagonal (inch)10.1
Graphics display resolution standardWXGA
Resolution (px)1280 x 800
Touch panel typeCTP-GG
Luminance in cd/m2800
Controller (IC)None
Video interfaceLVDS
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH128800T004-ZZC06
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH128800T004-ZZC06
Producer code
5900000743837
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
10.1
Graphics display resolution standardGraphics display resolution standard
WXGA
Resolution (px)Resolution (px)
1280 x 800
Aspect ratio
16:10
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
800
Controller (IC)Controller (IC)
None
Video interfaceVideo interface
LVDS
Viewing angles
85/85/85/85
Viewing direction
Full
Lens thickness
1,1 mm
Touch panel controller (IC)Touch panel controller (IC)
Microchip MXT1066
Touch panel interface
USB
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH128800T004-ZZC06

A 10.1" TFT display with a capacitive touch panel, created by Powertip. The display has 1280 x 800 WXGA resolution and an LVDS interface. Brightness: 800. Operating temperature range -20...+70°C.

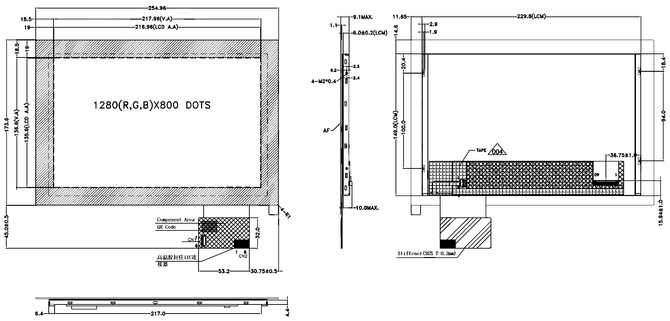

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
